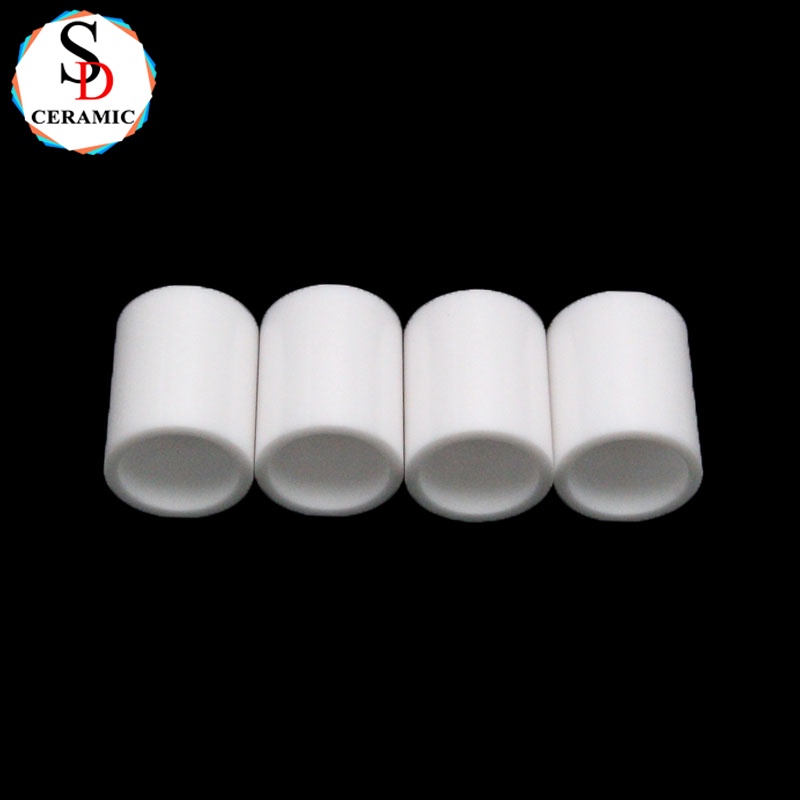

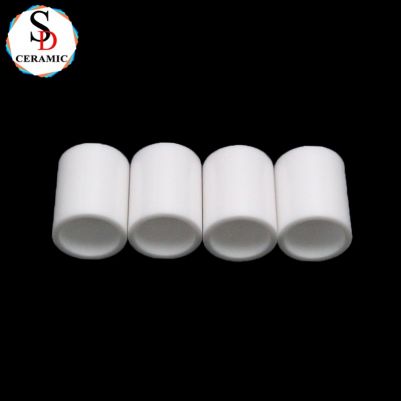

Wear Resistant Zirconia Tube Custom ZrO2 Ceramic Pipe

Product Overview

Our high-performance zirconia (ZrO₂) ceramic tubes combine superior wear resistance, thermal stability, and chemical inertness for demanding industrial applications. Custom diameters, lengths, and tolerances available for OEM solutions.

Key Technical Specifications

✅ Material: 3Y-TZP (Yttria-Stabilized Zirconia) – 94% ZrO₂ + 5.2% Y₂O₃
✅ Density: ≥6.05 g/cm³ – Near-zero porosity structure
✅ Flexural Strength: 1,000–1,200 MPa – 3× stronger than alumina tubes
✅ Hardness: 1,200–1,300 HV – Exceptional abrasion resistance
✅ Thermal Stability: Up to 800°C continuous use (1,200°C intermittent)
✅ CTE (25–500°C): 10.5×10⁻⁶/K – Matches metals for thermal cycling
✅ Surface Finish: Polished (Ra <0.1µm) or as-sintered (Ra 0.4µm)
✅ Standard Sizes:

Diameter: 2–150mm (±0.05mm tolerance)

Length: 5–500mm (custom lengths up to 1,000mm)

Wall Thickness: 0.5–20mm

Industry Applications

1. Chemical Processing

Corrosion-resistant pipes for HCl/H₂SO₄ transfer – Outlasts Hastelloy

Thermocouple protection sheaths – Stable in molten salts

2. Semiconductor Manufacturing

Plasma-resistant process tubes for CVD reactors

Wafer handling sleeves – Non-contaminating, static-free

3. Medical & Biotechnology

Surgical instrument guides – Biocompatible (ISO 13356)

Dialysis machine components – Steam-sterilizable

4. Energy & Environmental

Solid oxide fuel cell (SOFC) stacks – Ionic conductivity

Exhaust gas sensor housings – Thermal shock resistant

5. Industrial Machinery

Wire drawing guides – 10× lifespan vs. tungsten carbide

Laser cutting nozzles – Abrasion-resistant bore

Why Choose Zirconia Tubes?

✔ Unmatched Durability – Lowest wear rate among technical ceramics
✔ Precision Manufacturing – ID/OD concentricity <0.01mm
✔ Custom Solutions – Tapered, flanged, or threaded ends
✔ Hybrid Assembly Ready – CTE-matched to stainless steel

Ceramic Properties

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
