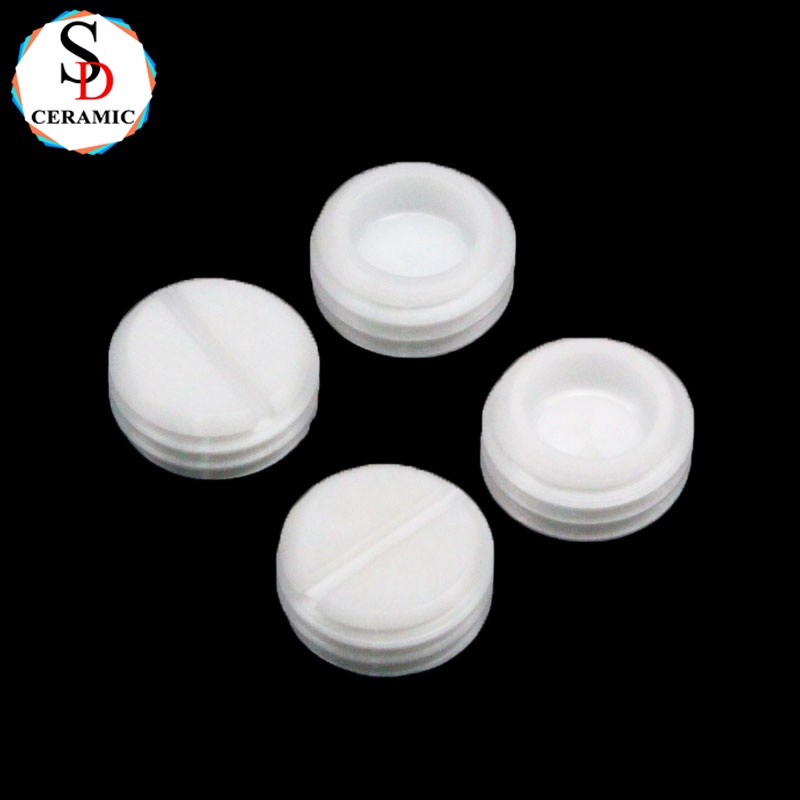

Wear Resistant High Precision Zirconia Ceramic Parts ZrO2 Ceramic Sealing Lid

Product Overview

Our precision-engineered zirconia (ZrO₂) ceramic parts deliver unmatched wear resistance, thermal stability, and mechanical strength for demanding industrial applications. Customizable sealing lids, shafts, and components for OEM solutions.

Key Technical Specifications

✅ Material: 3Y-TZP (Yttria-Stabilized Zirconia) – 94% ZrO₂ + 5.2% Y₂O₃

✅ Density: ≥6.05 g/cm³ – Near-zero porosity

✅ Flexural Strength: 1,200–1,500 MPa (2× stronger than alumina)

✅ Hardness: 1,200–1,300 HV – Superior abrasion resistance

✅ Fracture Toughness: 6–8 MPa·m¹/² – Resists chipping/cracking

✅ Thermal Stability: Up to 800°C continuous use (1,200°C intermittent)

✅ CTE (25–500°C): 10.5×10⁻⁶/K – Matches metals for hybrid assemblies

✅ Surface Finish: Polished (Ra <0.05µm) or as-sintered (Ra 0.2µm)

✅ Tolerances: ±0.01mm (CNC/laser machining)

Industry Applications

1. Semiconductor & Vacuum Equipment

Plasma-resistant sealing lids for etch/PVD chambers (prevents metal contamination)

Wafer handling arms – Non-conductive, particle-free

2. Medical & Dental Implants

Biocompatible sealing rings for surgical tools (ISO 13356 certified)

Dental implant abutments – Wear-resistant, MRI-safe

3. Chemical & Petrochemical

Pump shaft seals – Withstands corrosive slurries (HCl, NaOH)

Valve components – Zero galvanic corrosion

4. Automotive & Energy

Fuel cell stack plates – High ionic resistivity

Oxygen sensor housings – Thermal shock resistant

5. Industrial Machinery

Precision bearings & guides – 10× longer lifespan than steel in abrasive environments

Why Choose Zirconia Parts?

✔ Metal-Like Toughness – Highest fracture toughness among oxides

✔ Custom Geometry – Complex shapes via CNC/diamond grinding

✔ Hybrid Assembly Ready – CTE-matched to stainless steel/Inconel

✔ Cost Savings – Eliminates lubrication in wear applications

Ceramic Properties

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
