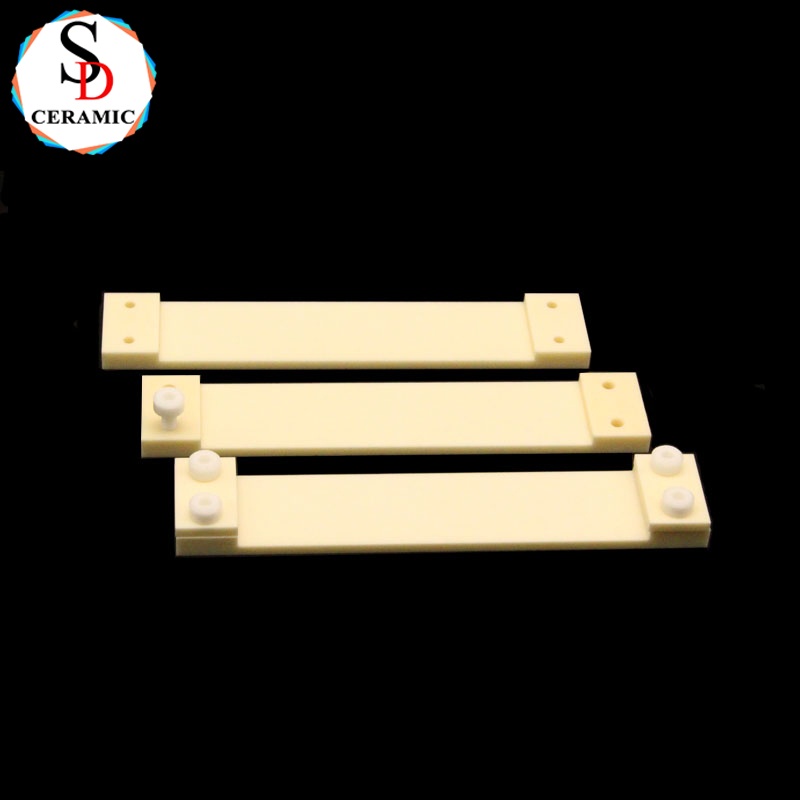

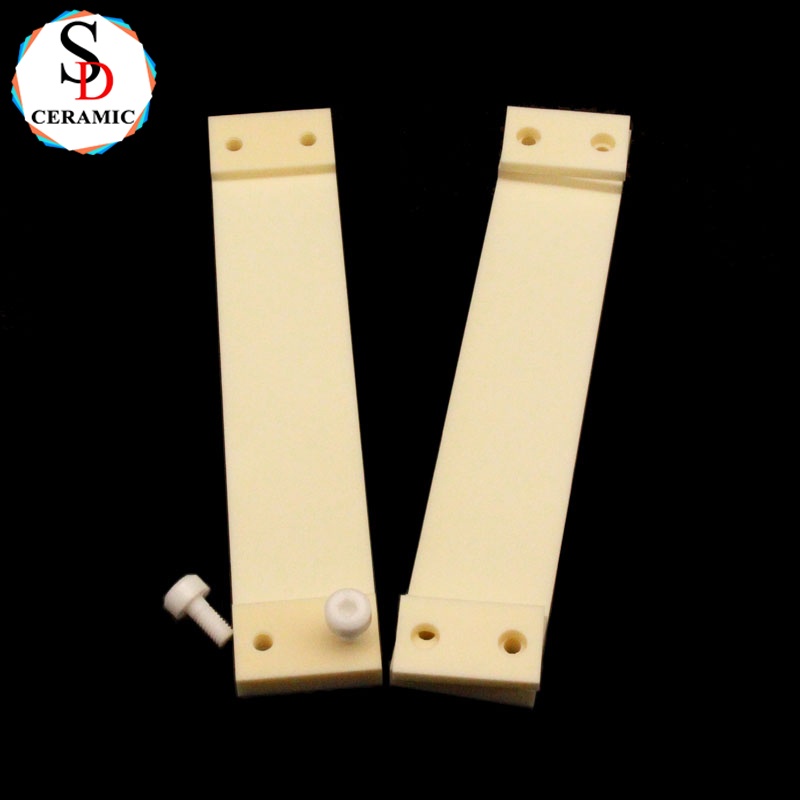

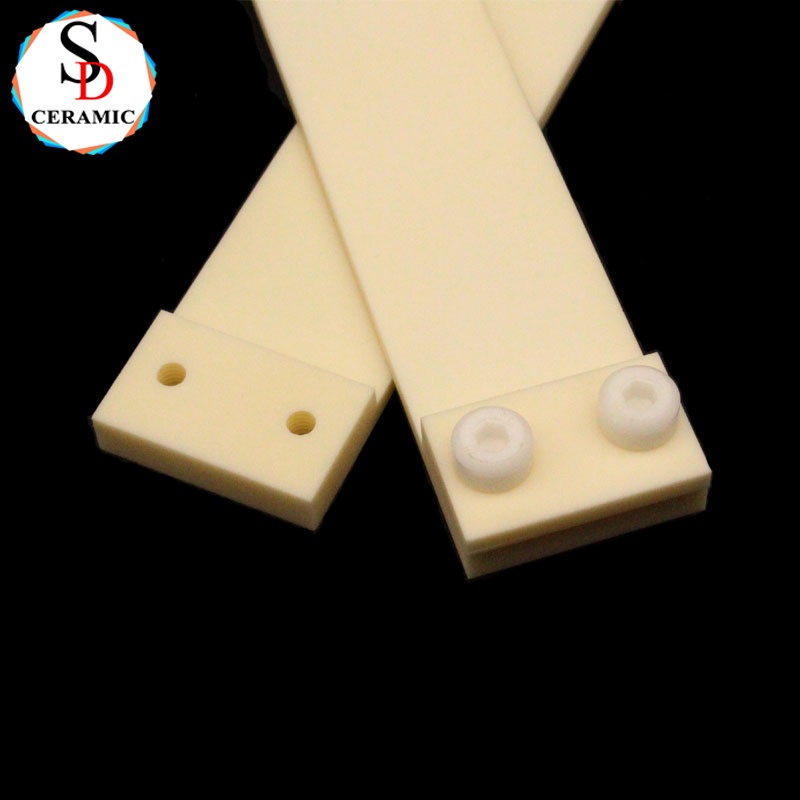

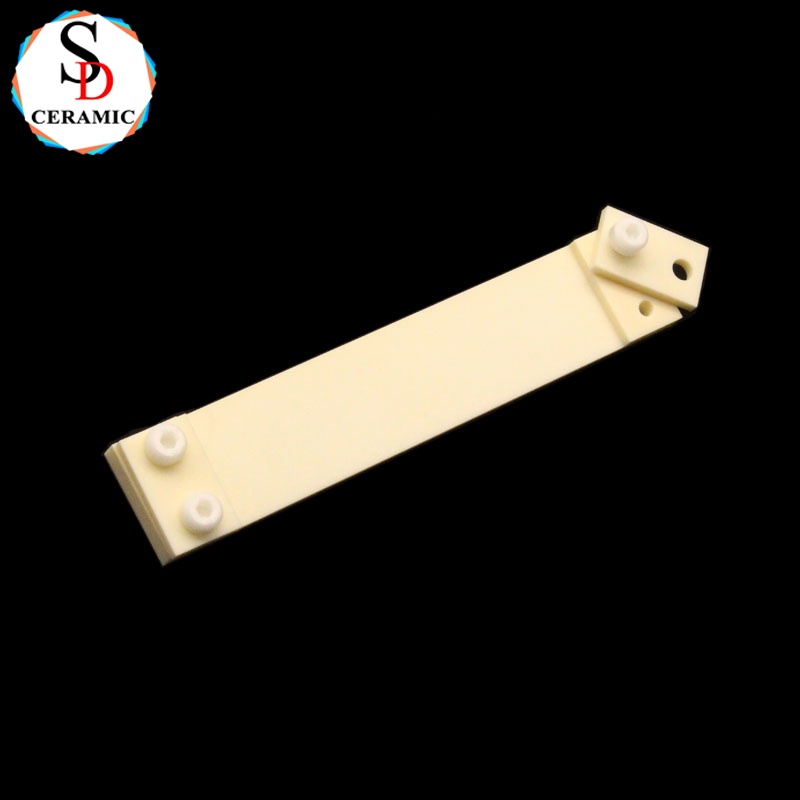

Resistant to Corrosion and Thermal Shock 99 Alumina Ceramic Strips

Key Technical Specifications

✅ Material: 99% Alumina (Al₂O₃) – High purity for optimal performance

✅ Density: 3.9 g/cm³ – Dense, low-porosity structure

✅ Flexural Strength: 300–400 MPa – Resists mechanical stress

✅ Hardness: 15 GPa (HV 1500) – Superior wear resistance

✅ Thermal Shock Resistance: ΔT >500°C (Water quenching test)

✅ Max Operating Temp: 1,600°C (2,912°F) – Continuous use

✅ Dielectric Strength: 15–20 kV/mm – Excellent electrical insulation

✅ Chemical Resistance: Impervious to acids/alkalis (except HF & hot H₃PO₄)

✅ Standard Sizes: Thickness 0.5–20mm, Width 5–200mm (Custom cuts ±0.1mm tolerance)

Industry Applications

1. Semiconductor & Electronics

Plasma etch chamber liners – Non-contaminating, RF-transparent material

Wafer handling components – Prevents static discharge damage

2. Chemical Processing

Acid-resistant baffles & spacers – Replaces stainless steel in HCl/H₂SO₄ environments

3. High-Temperature Furnaces

Kiln furniture & thermocouple shields – Stable at 1,500°C+

4. Medical Devices

MRI machine components – Non-magnetic, biocompatible (ISO 6474)

5. Automotive Sensors

Oxygen sensor substrates – Thermal cycling durability

Why Choose Our Alumina Strips?

✔ Zero Metal Contamination – Critical for semiconductor/medical uses

✔ Laser-Cut Precision – Tight tolerances (±0.05mm) for complex designs

✔ Cost-Effective – Longer lifespan than zirconia or silicon carbide

✔ Custom Finishes – Polished (Ra <0.1µm) or as-fired surface

Ceramic Properties

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
