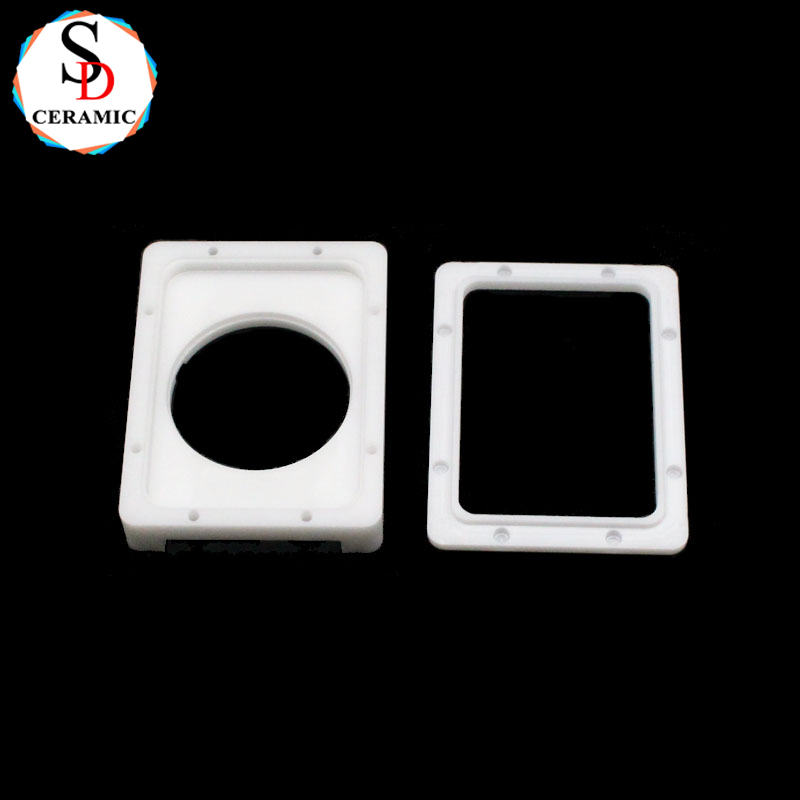

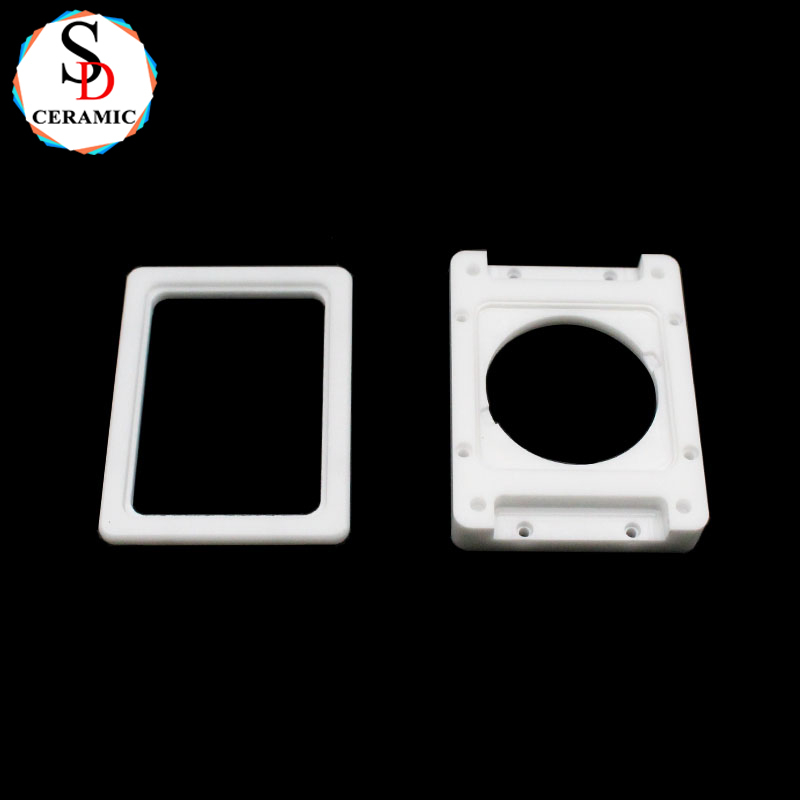

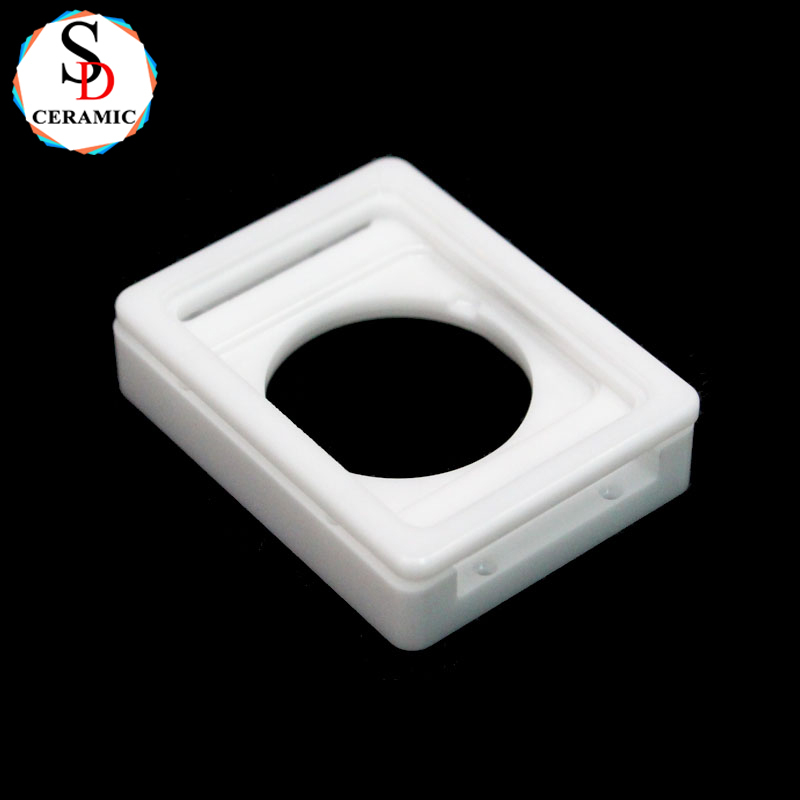

Custom High Strength Zirconia Ceramic Block OEM Supply

Key Technical Specifications

✅ Material Grade: 3Y-TZP (94% ZrO₂ + 5.2% Y₂O₃) – Highest fracture toughness

✅ Density: ≥6.05 g/cm³ – Near-theoretical sintering

✅ Flexural Strength: 1,200–1,500 MPa – 2× stronger than alumina

✅ Hardness: 1,200 HV (Vickers) – Wear-resistant surface

✅ Thermal Stability: Up to 800°C continuous use (1,200°C intermittent)

✅ CTE (25–500°C): 10.5×10⁻⁶/K – Matches many metals for hybrid assemblies

✅ Electrical Insulation: >10¹² Ω·cm – Ideal for electronics

✅ Custom Sizes: 10×10mm to 300×300mm (±0.1mm precision)

Industry Applications

1. Medical & Dental Implants

Surgical guide blocks & dental abutments (biocompatible, ASTM F1873 compliant)

2. Industrial Wear Components

Pump seals, bearing races – Outlasts tungsten carbide in slurry environments

3. Semiconductor & Electronics

Plasma-resistant chamber liners – Zero particle contamination in etching tools

4. Automotive Sensors

Oxygen sensor substrates – Thermal shock-resistant λ-probe cores

5. Precision Machinery

Laser cutting nozzles – Withstand abrasive particle erosion

Why Choose Zirconia Blocks?

✔ Superior Toughness – 6–8 MPa·m¹/² fracture toughness (vs. 3–4 for alumina)

✔ Metal-Matching CTE – Enables thermal cycling stability in bonded assemblies

✔ Custom Fabrication – CNC/Laser machining to ±0.01mm tolerances

✔ Surface Finishes – Polished (Ra <0.05µm) or as-sintered (Ra 0.2µm)

Ceramic Properties

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
