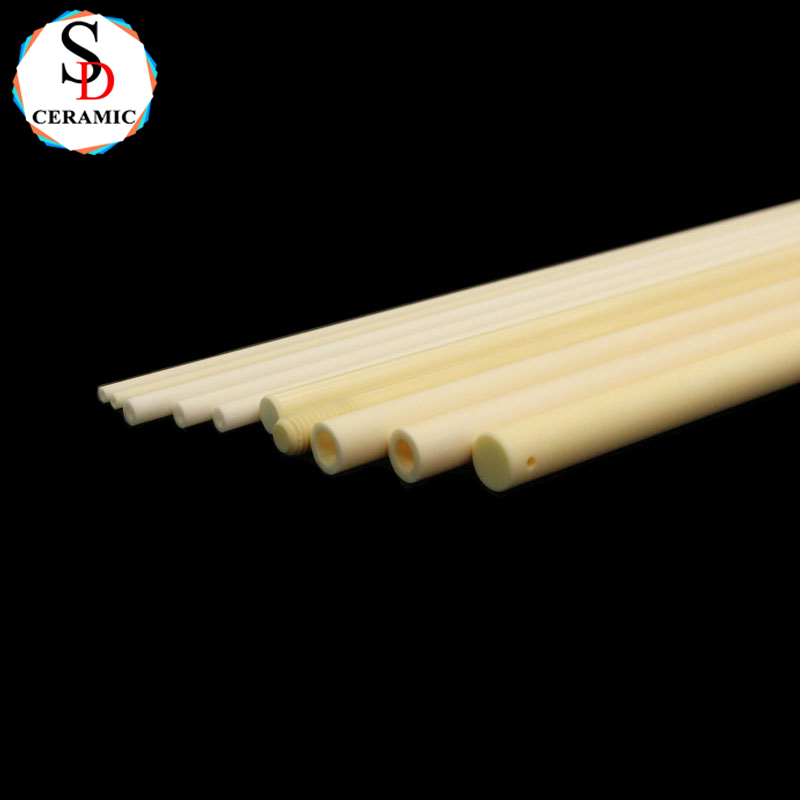

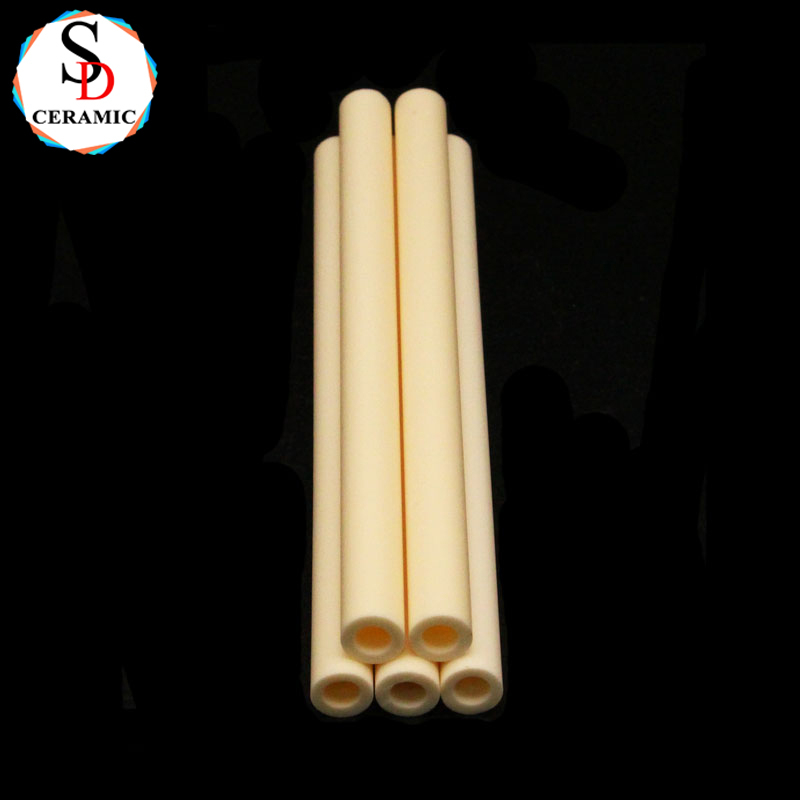

Wear and Corrssion Resistant Alumina Tubes Ceramic Bar

Alumina tubes are high-performance ceramic components made from aluminum oxide (Al₂O₃), a material known for its exceptional hardness, thermal stability, and chemical resistance. These tubes are widely used in industries requiring extreme durability, high-temperature resistance, and protection against wear and corrosion.

Key Properties of Alumina Tubes

High-Temperature Resistance – With a maximum operating temperature of up to 1600°C, alumina tubes are ideal for furnace linings, thermocouple protection, and molten metal handling.

Exceptional Wear Resistance – Due to their high hardness (≥1500 HV), they outperform metals and plastics in abrasive environments like mining and cement industries.

Corrosion Resistance – Alumina is inert to most acids, alkalis, and solvents, making it perfect for chemical processing and semiconductor applications.

Electrical Insulation – With high dielectric strength (15–20 kV/mm), alumina tubes are used in electronics and high-voltage applications.

Mechanical Strength – They offer excellent flexural strength (300–400 MPa) and structural stability under mechanical stress.

Alumina tubes come in various purity levels (96%–99.9% Al₂O₃) and can be customized in diameter (2mm–200mm), length, and surface finish (polished, machined, or as-fired).

Conclusion

Alumina tubes are essential in industries where extreme conditions demand long-lasting, non-reactive, and thermally stable materials. Their versatility makes them a preferred choice for engineers and manufacturers worldwide.

﹡Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

﹡Certifications

﹡Company

Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.

﹡Ceramic Properties
