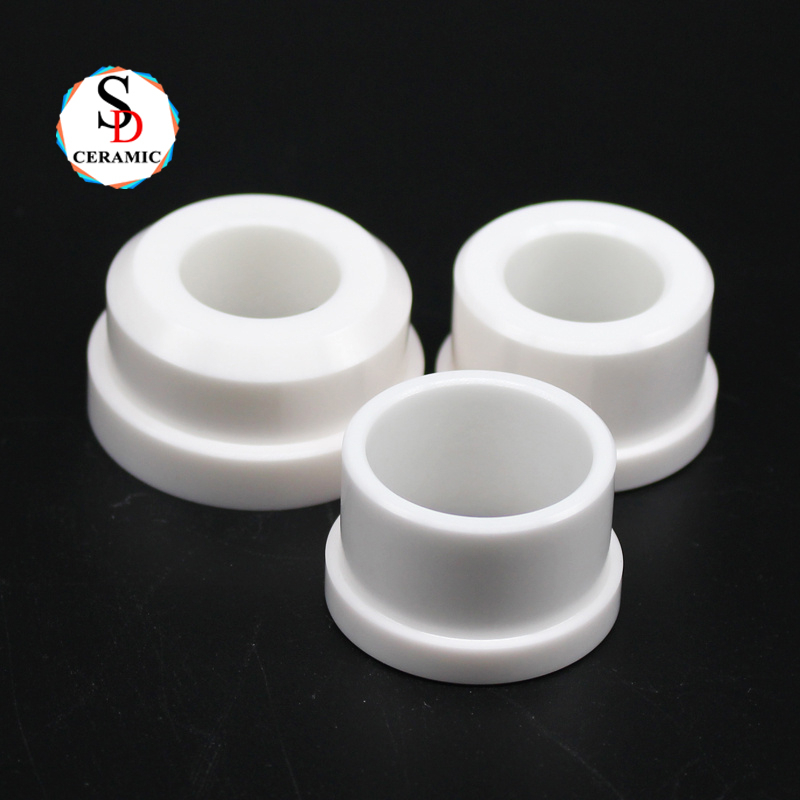

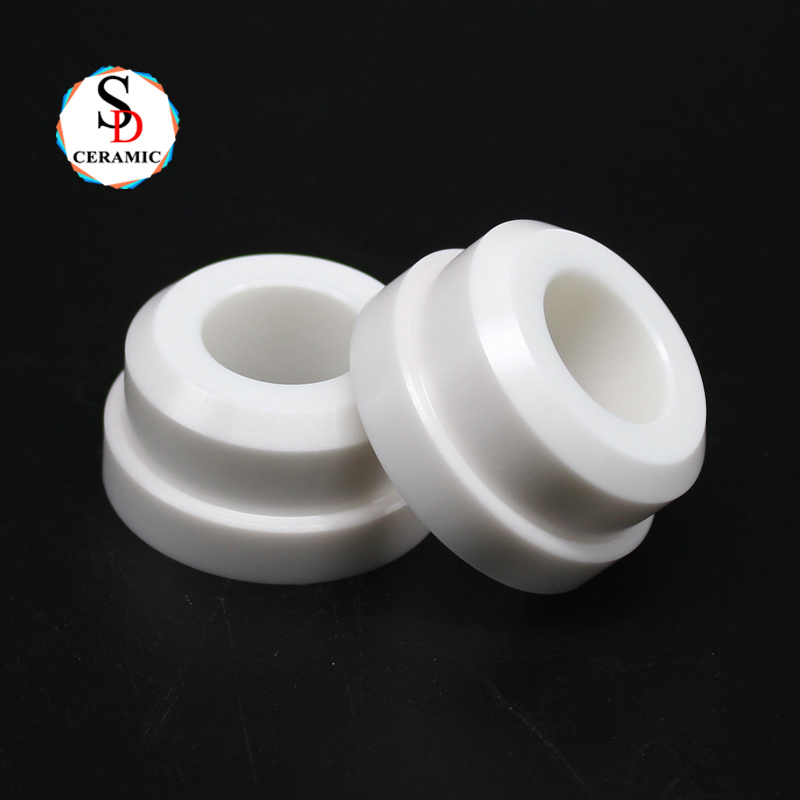

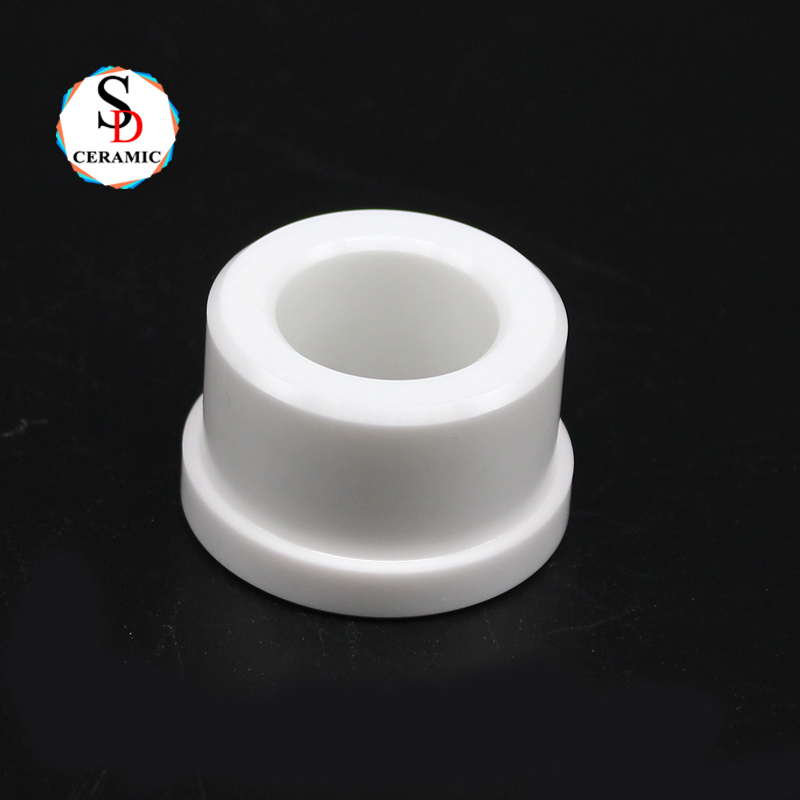

High Purity T-type Zirconia Ceramic Tube Zro2 Ceramic Bushing with Factory Price

Shengda Ceramic provide all kinds of Zirconia Ceramic Engineering Ceramic.

Product Introduction

﹡Product Overview

Our T-type zirconia ceramic tubes and bushings represent the pinnacle of advanced ceramic engineering, offering exceptional mechanical strength, wear resistance, and thermal stability for mission-critical applications. Manufactured from high-purity ZrO₂ (zirconium dioxide), these precision components deliver superior performance in extreme environments where traditional materials fail.


Key Features & Benefits

✔ Ultra-High Strength - Flexural strength up to 1200 MPa

✔ Exceptional Toughness - Fracture toughness 7-10 MPa·m¹/²

✔ Wear Resistance - Vickers hardness 1200-1300 HV

✔ Thermal Stability - Operating range -200°C to 800°C

✔ Corrosion Immunity - Resists acids, alkalis, and solvents

✔ Electrical Insulation - Volume resistivity >10¹⁰ Ω·cm

✔ Factory Direct Pricing - Competitive costs without middlemen


Industry Applications

1. Semiconductor Manufacturing

Plasma etch components for wafer processing

Vacuum chamber feedthroughs

Precision alignment bushings

2. Medical & Biotechnology

Sterilizable instrument components

Implantable device housings

MRI-compatible equipment parts

3. Chemical Processing

Corrosion-resistant pump bushings

Reactor tube liners for aggressive chemicals

Flow control components

4. Automotive & Aerospace

Sensor housings for exhaust systems

Fuel system components

High-temp bearing surfaces

5. Energy & Power Generation

Fuel cell stack components

Battery system insulators

Nuclear instrumentation tubes


High Purity T-type Zirconia Ceramic Tube Zro2 Ceramic Bushing with Factory PriceHigh Purity T-type Zirconia Ceramic Tube Zro2 Ceramic Bushing with Factory PriceHigh Purity T-type Zirconia Ceramic Tube Zro2 Ceramic Bushing with Factory Price




Why Choose Zirconia Ceramic Tubes?

Precision Manufacturing - CNC machining capabilities

Quality Assurance - Full traceability and testing

Fast Turnaround - Prototypes in 2-3 weeks

Competitive Pricing - Factory-direct value




Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe


Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.



Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926


High Temperature Alumina Ceramic Block Ring
