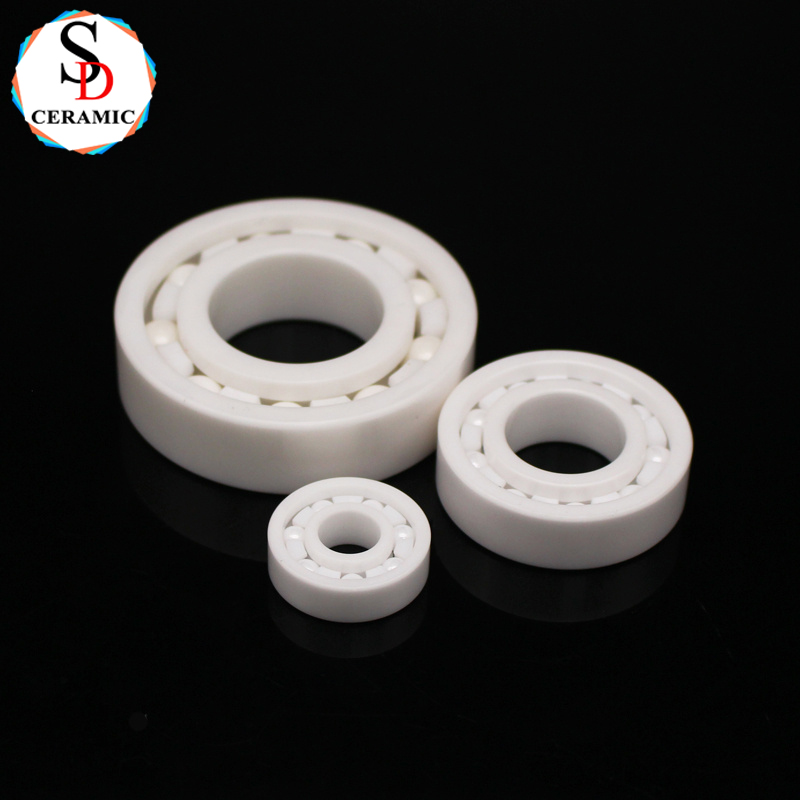

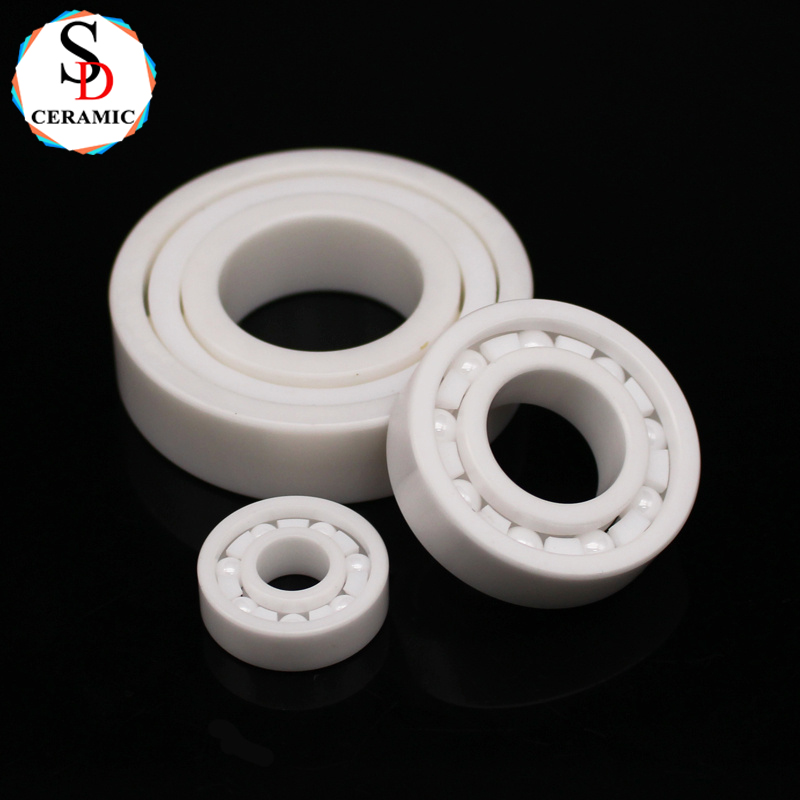

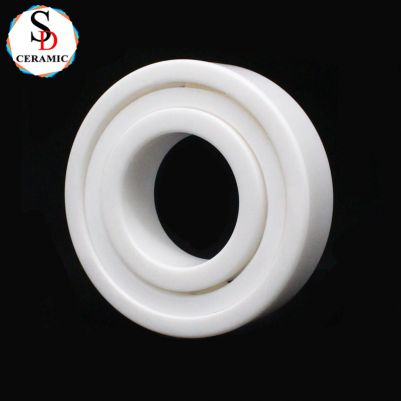

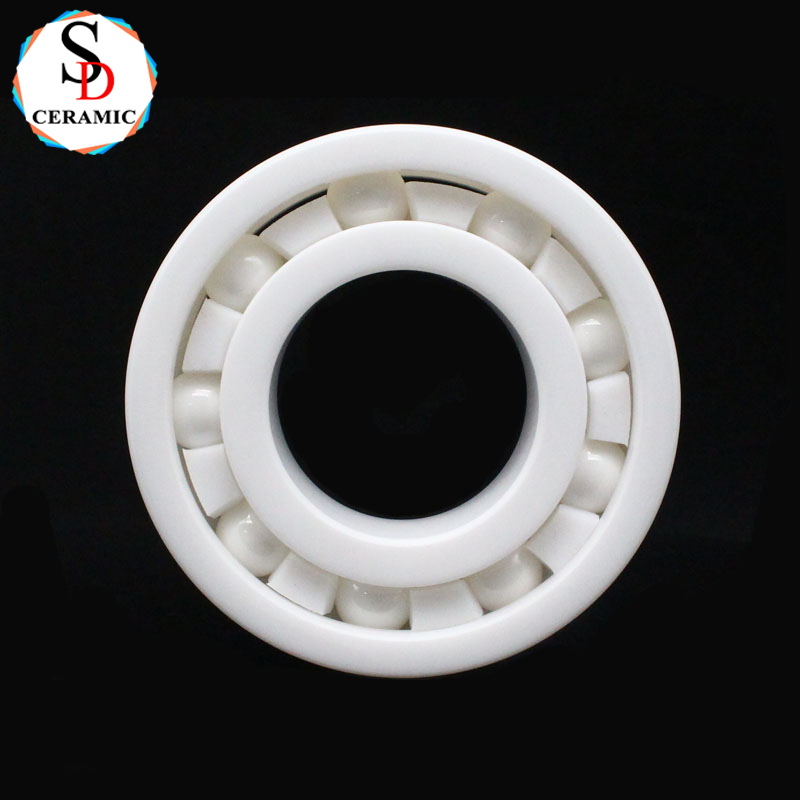

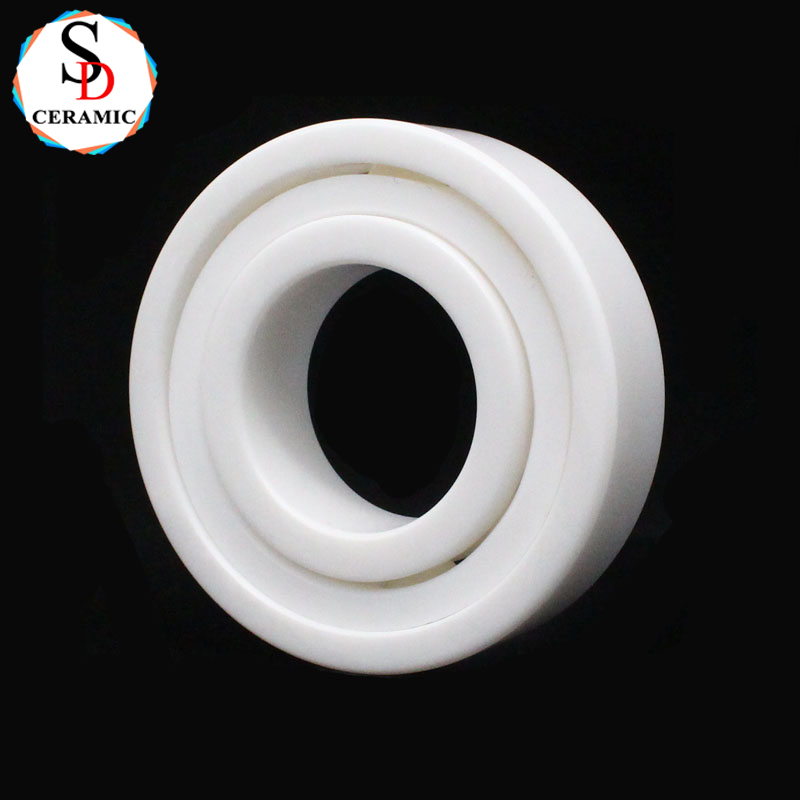

High performance Industrial Zirconia Ceramic Ball Bearing ZrO2 Ceramic Roller Groove Ring

Shengda Ceramic provide all kinds of Zirconia Ceramic Engineering Ceramic.

Product Introduction

Product Overview

Our zirconia ceramic ball bearings and groove rings (ZrO₂) represent the pinnacle of bearing technology, offering superior wear resistance, corrosion immunity, and high-temperature stability compared to traditional steel bearings. Engineered for mission-critical applications where failure is not an option, these advanced ceramic components deliver longer service life, reduced maintenance, and enhanced performance across multiple industries.


Key Technical Specifications

Exceptional Hardness - Mohs 8.5 hardness for outstanding wear resistance

Corrosion Proof - Immune to rust, acids, and harsh chemicals

High-Temperature Capable - Stable up to 800°C (1472°F) continuous operation

Non-Magnetic & Electrically Insulating - Ideal for sensitive electronic environments

Lightweight - 60% lighter than steel for reduced centrifugal forces

Self-Lubricating - Low friction coefficient (0.1-0.15) for dry running capability


Industry Applications

1. Semiconductor & Electronics Manufacturing

Vacuum chamber bearings for wafer handling robots

Precision guide rollers in cleanroom environments

Non-magnetic bearings for MRI and analytical equipment

2. Chemical & Pharmaceutical Processing

Corrosion-resistant pumps for aggressive fluids

Sterilizable bearings for pharmaceutical mixers

FDA-compliant rollers for food processing

3. Automotive & Aerospace

Turbocharger bearings for high-temperature operation

Fuel system components resisting ethanol blends

Spacecraft mechanisms requiring vacuum compatibility

4. Medical & Dental Equipment

Sterilizable dentalhandpiece bearings

Implantable device components

MRI-compatible scanner bearings

5. Energy & Industrial Machinery

Wind turbine pitch control bearings

Subsea equipment for oil/gas industry

High-speed spindle bearings for CNC machines


High performance Industrial Zirconia Ceramic Ball Bearing ZrO2 Ceramic Roller Groove RingHigh performance Industrial Zirconia Ceramic Ball Bearing ZrO2 Ceramic Roller Groove RingHigh performance Industrial Zirconia Ceramic Ball Bearing ZrO2 Ceramic Roller Groove Ring




﹡Competitive Advantages

Longer Service Life - 3-5× lifespan vs steel bearings in harsh conditions

Reduced Downtime - Virtually eliminates corrosion-related failures

Energy Efficient - Lower friction reduces power consumption

Maintenance-Free - Often operates without lubrication

Custom Engineered - Solutions tailored to your exact requirements




Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe


Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.



Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926


High Temperature Alumina Ceramic Block Ring
