High Precision Polish Zirconia Cylinder Zirconia Shaft Piston Ceramic Plunger for Pump

Shengda Ceramic provide all kinds of Zirconia Ceramic Engineering Ceramic.

Inquire Now

Product Introduction

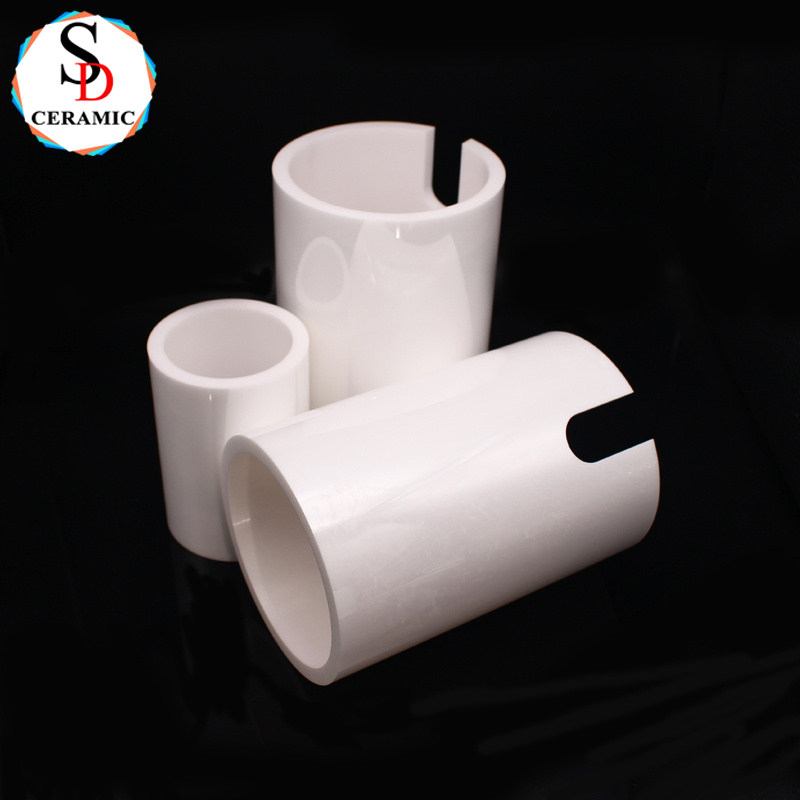

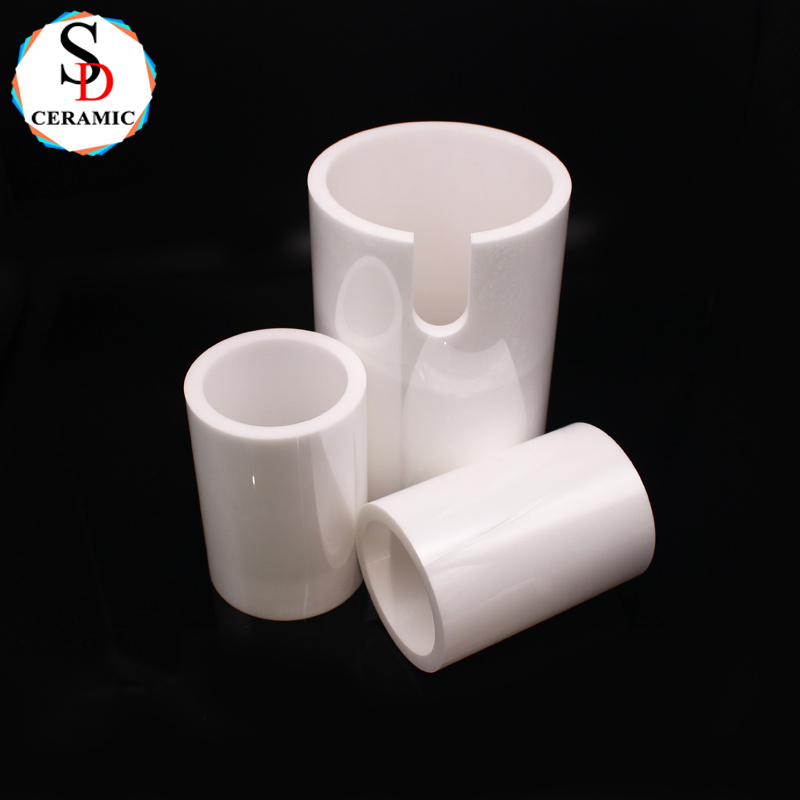

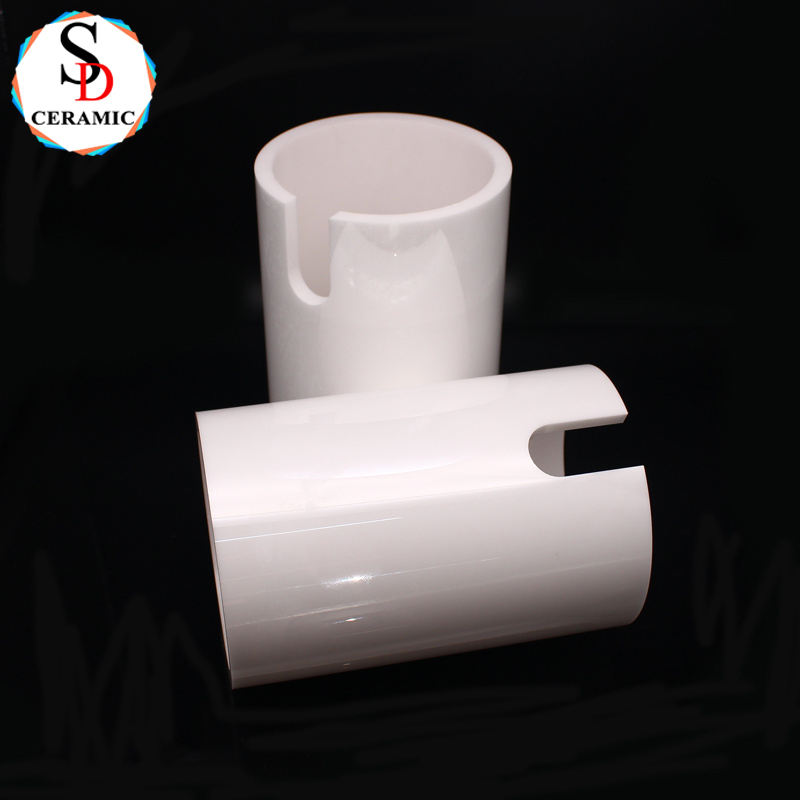

The Zirconia Cylinder is a high-performance ceramic component widely used in pumps, precision machinery, and industrial applications. Made from advanced zirconium dioxide (ZrO₂), it offers exceptional hardness, wear resistance, and thermal stability, making it ideal for demanding environments.

*Key Features of Zirconia Cylinder

- High Precision & Smooth Surface: Precision polishing ensures minimal friction, enhancing efficiency in pump systems.

- Superior Wear Resistance: Outperforms metals and other ceramics, reducing maintenance costs.

- Corrosion & Chemical Resistance: Ideal for harsh chemical and high-temperature applications.

- Excellent Mechanical Strength: Withstands high pressure and mechanical stress, ensuring long-term durability.

High Precision Polish Zirconia Cylinder Zirconia Shaft Piston Ceramic Plunger for Pump

*Applications

Zirconia cylinders are commonly used in fuel pumps, hydraulic systems, medical devices, and precision instruments. Their reliability and longevity make them a preferred choice for engineers seeking high-performance solutions.

In summary, the Zirconia Cylinder is a critical component for industries requiring precision, durability, and resistance to extreme conditions. Its advanced material properties ensure optimal performance in the most challenging applications.

Keywords: Zirconia Cylinder, ceramic plunger, zirconia shaft, high precision pump component.

﹡Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate

﹡Certifications

95 alumina substrate

﹡Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe

Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.

﹡Ceramic Properties

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	99.5%Alumina Ceramic	99.7%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Light yellow	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.8	3.9	3.2	6
Flexural Strength	Mpa	30	120	300	350	375	375	800	1100
Compressive Strength	MPa	350	500	2500	2800	2800	2554	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	350	357	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1500	1760	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	30	33-38	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	8.2	8.2	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	200	223	600	250
Dielectric Strength	KV/mm	-	-	15	18	18	23.4	14	15
Dielectric Constant	Er	8	8	9	9.2	9.2	9.84	9	26
