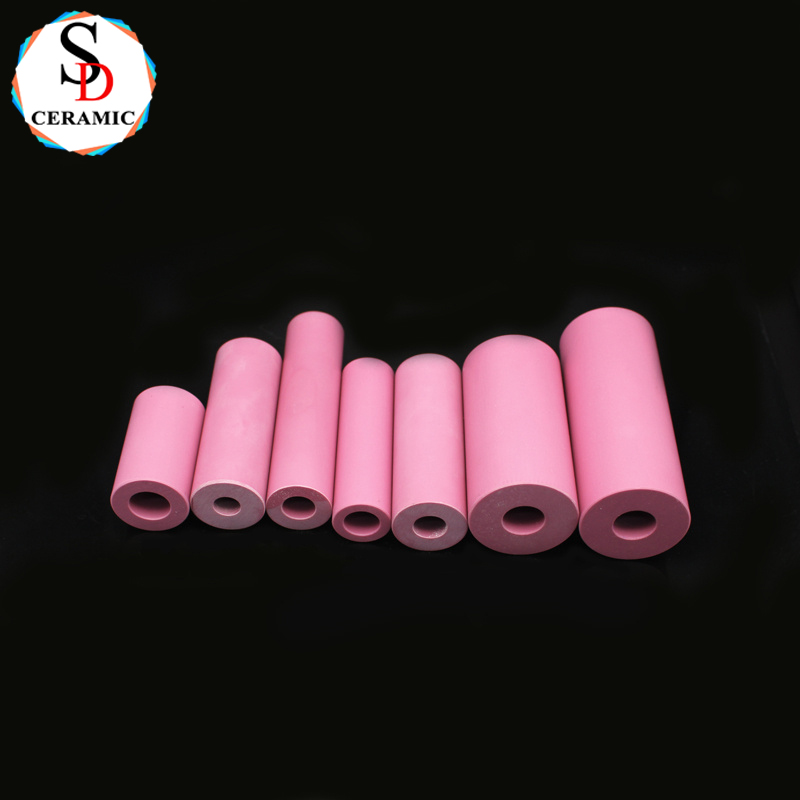

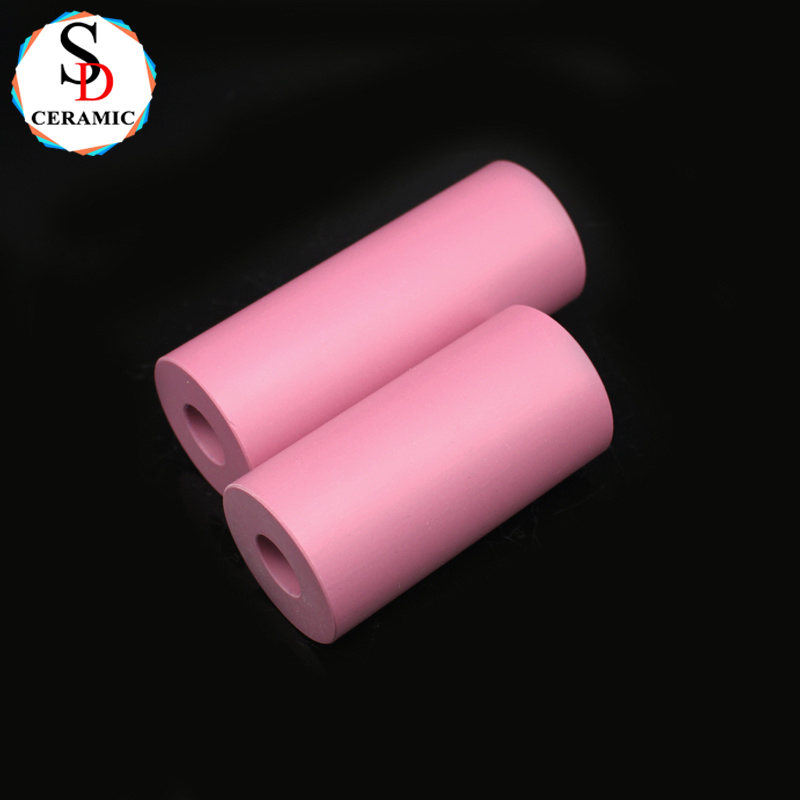

Excellent Corrosion Resistance Alumina Ceramic Pipe for Industrial Applications

﹡Product Overview

Our high-purity alumina (Al₂O₃) ceramic pipes are engineered for extreme corrosion resistance, thermal stability, and mechanical strength in harsh industrial environments. Custom diameters, lengths, and configurations available for OEM applications.

﹡Key Technical Specifications

✅ Material: 99.5% Alumina (Al₂O₃) – Ultra-low porosity (<0.5%)

✅ Density: 3.9 g/cm³ – Gas-tight structure

✅ Flexural Strength: 350 MPa – Withstands high mechanical stress

✅ Hardness: 1,500 HV (Mohs 9) – Superior abrasion resistance

✅ Max Temperature: 1,600°C (2,912°F) continuous use

✅ Thermal Shock Resistance: ΔT >500°C (Water quenching test)

✅ Chemical Resistance: Impervious to acids/alkalis (except HF & hot H₃PO₄)

✅ Surface Finish: Polished (Ra <0.1µm) or as-fired (Ra 0.5µm)

✅ Standard Sizes:

Outer Diameter (OD): 10–200mm (±0.1mm tolerance)

Inner Diameter (ID): 5–180mm

Length: 50–1,000mm (custom lengths up to 2,000mm)

﹡Industry Applications

1. Chemical Processing

Acid transfer pipes for HCl/H₂SO₄ – 10× lifespan vs. stainless steel

Reactor liners – Resists corrosive slurries at 80°C+

2. Semiconductor Manufacturing

Plasma etch chamber components – Non-contaminating, RF-transparent

Ultra-pure water delivery systems – Zero ion leaching

3. Mining & Mineral Processing

Slurry transport pipes – Withstands abrasive alumina/silica particles

4. Energy & Environmental

Flue gas desulfurization (FGD) ducts – Sulfuric acid resistance

Solid oxide fuel cell (SOFC) stacks – High-temperature insulation

5. Medical & Food

Sterilizable fluid conduits – Biocompatible (ISO 6474)

Pharmaceutical processing tubes – FDA-compliant material

﹡Why Choose Alumina Pipes?

✔ Zero Corrosion – Eliminates rust/pitting in chemical environments

✔ Precision Machining – ID/OD concentricity <0.05mm

✔ Custom Designs – Flanged, threaded, or tapered ends

✔ Cost Savings – 5–8 year service life in abrasive applications

﹡Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

﹡Certifications

﹡Company

Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.

﹡Ceramic Properties
