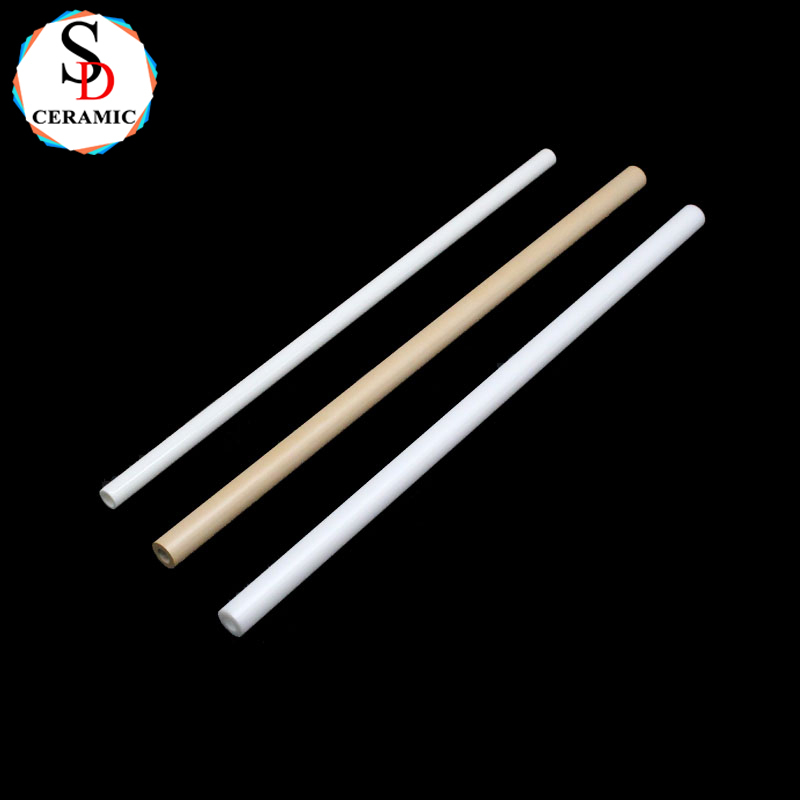

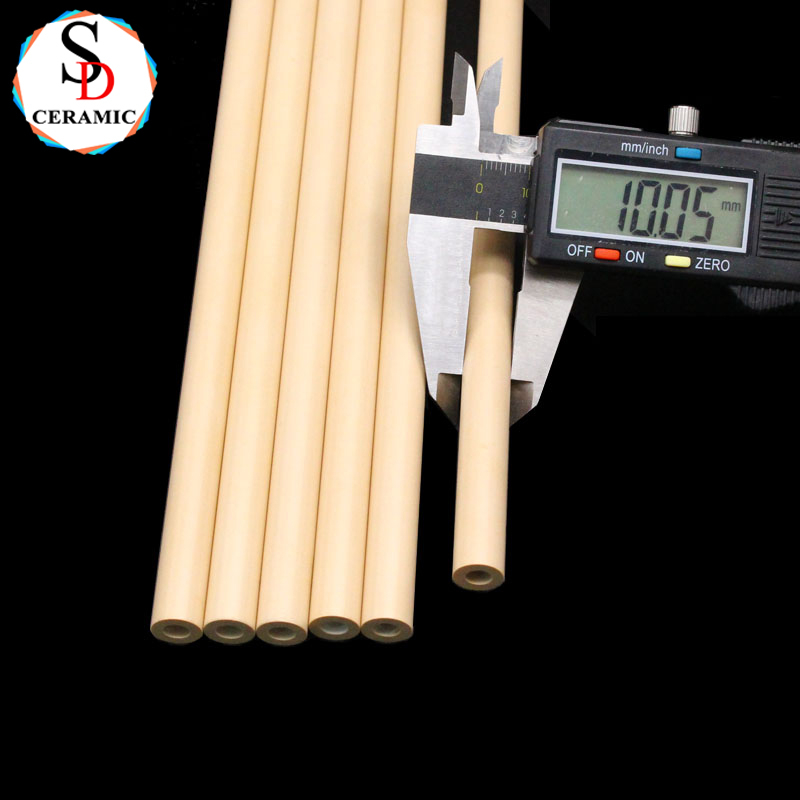

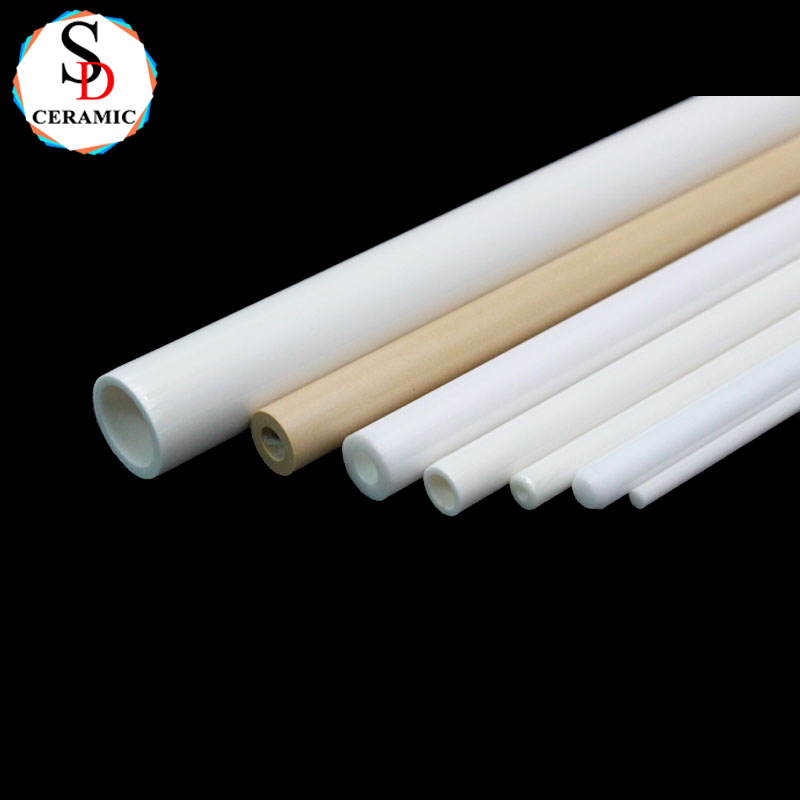

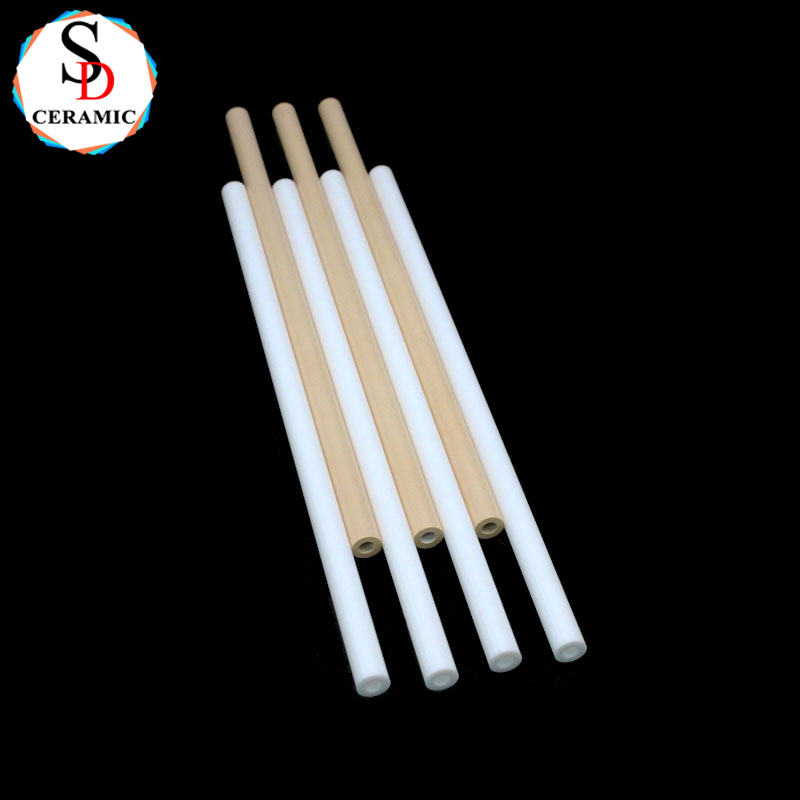

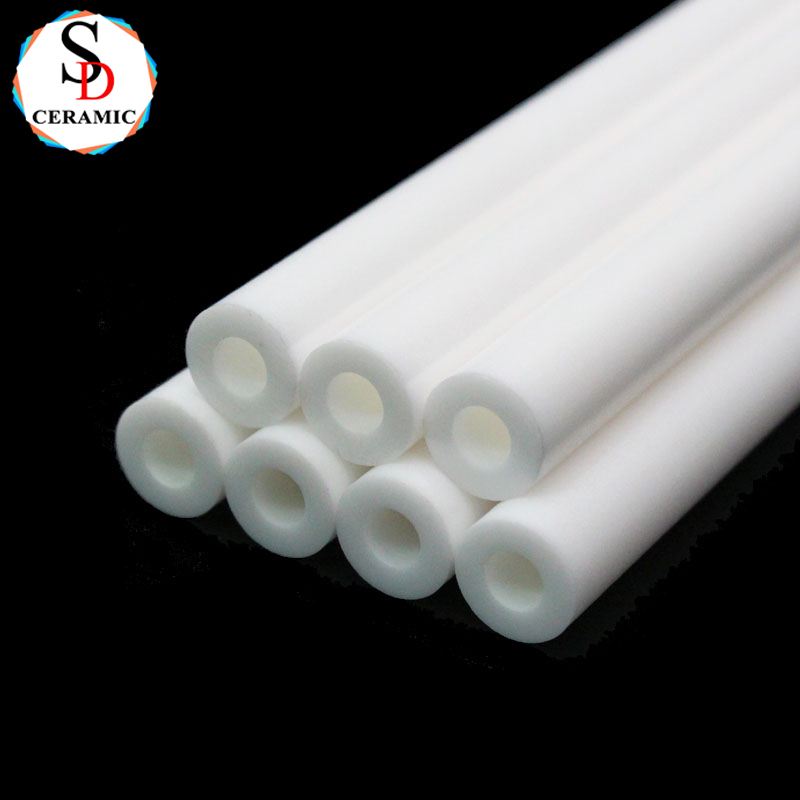

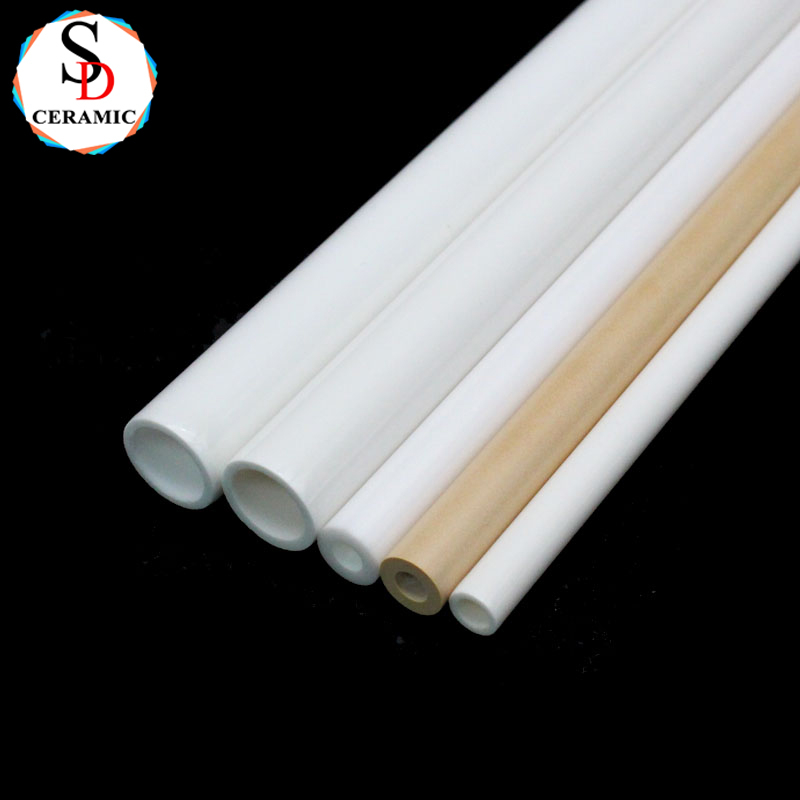

High Strength And Wear Resistance Zirconia Ceramic Tube / Rod / Bar

﹡Zirconia Ceramic Tube & ZrO2 Ceramic Pipe

Zirconia tubes, made from zirconium dioxide (ZrO₂), are advanced ceramic components known for their exceptional thermal, mechanical, and chemical properties. These tubes are widely used in high-temperature applications due to their excellent thermal stability, withstanding temperatures up to 2400°C in inert environments. Their low thermal conductivity and high melting point make them ideal for furnace linings, thermocouple protection, and solid oxide fuel cells (SOFCs).

Magnesia Partially Stabilized Zirconia (Mg-PSZ)(Yello color ) is a high-performance ceramic material made by adding magnesium oxide (MgO) as a stabilizer to zirconium oxide (ZrO₂). This partially stabilized zirconia has excellent mechanical properties, thermal stability and thermal shock resistance, and is widely used in industrial fields under high temperature and harsh environments.

1、Exceptional Mechanical Properties: Boasting high fracture toughness and bending strength, Zirconia tubes withstand extreme mechanical stress, making them ideal for demanding applications.

2、Superior Wear Resistance: Their exceptional hardness minimizes wear and tear, ensuring extended service life even in abrasive environments.

3、Excellent Thermal Stability: Withstanding extreme temperatures, Zirconia tubes maintain structural integrity in both high-heat and cryogenic conditions.

4、Corrosion Resistance: Inert to most chemicals, these tubes excel in corrosive environments where metals fail.

5、Electrical Insulation: Zirconia's excellent dielectric properties make it perfect for electrical insulation applications.

* Technical Parameters

﹡Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

*Certifications

*Packaging and shipping

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
