High Abrasion Resistant Silicon Nitride Ceramic Strip Sheet with Double Hole for Precision Applications

Shengda Ceramic provide all kinds of Silicon Nitride Ceramic Engineering Ceramic.

Product Introduction

﹡Product Overview

Our silicon nitride ceramic strips and sheets represent the cutting edge in wear-resistant, high-strength ceramic solutions for demanding industrial applications. Featuring precision double-hole designs, these advanced ceramic components deliver exceptional abrasion resistance, thermal stability, and mechanical strength - outperforming traditional materials in the most challenging operating conditions.


Key Features & Benefits

✔ Superior Wear Resistance - Vickers hardness of 1600-1800 HV

✔ Excellent Fracture Toughness - 6-8 MPa·m¹/² resists chipping and cracking

✔ High-Temperature Capability - Stable up to 1200°C (2192°F) in air

✔ Low Thermal Expansion - 3.2×10⁻⁶/°C minimizes thermal stress

✔ Lightweight Construction - 60% lighter than steel alternatives

✔ Customizable Designs - Available with precision double-hole patterns


Industry Applications

1. Automotive & Aerospace

Wear strips for turbocharger vanes

Guide rails in fuel injection systems

Thermal barrier sheets for brake systems

2. Industrial Machinery

Wear-resistant liners for extruder barrels

Precision slides in CNC equipment

Cutting tool substrates for metalworking

3. Electronics & Semiconductor

Wafer handling arms in cleanrooms

Insulating spacers for power electronics

Plasma-resistant components in etchers

4. Energy & Power Generation

Sealing strips in turbine engines

Bearing rails for wind turbines

Insulating components in nuclear systems

5. Medical & Food Processing

Wear plates for pharmaceutical equipment

Non-contaminating guides in food conveyors

Sterilizable components for surgical devices

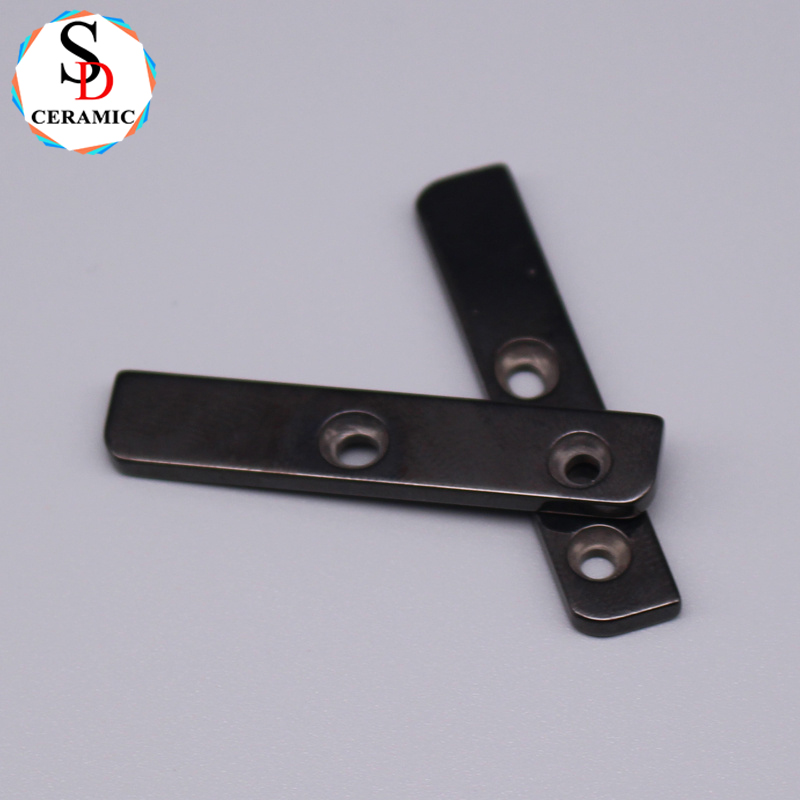

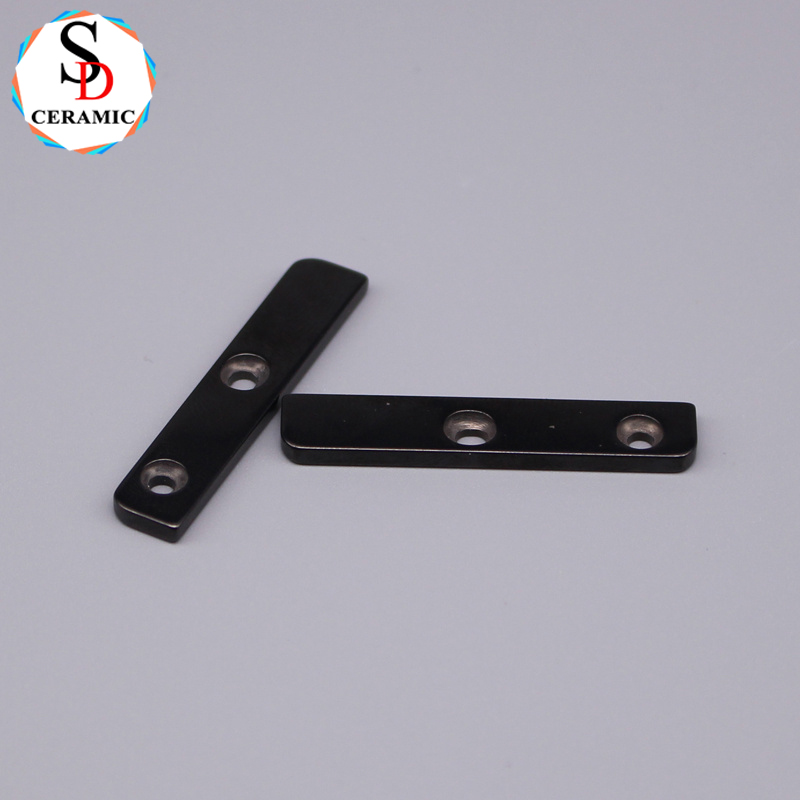

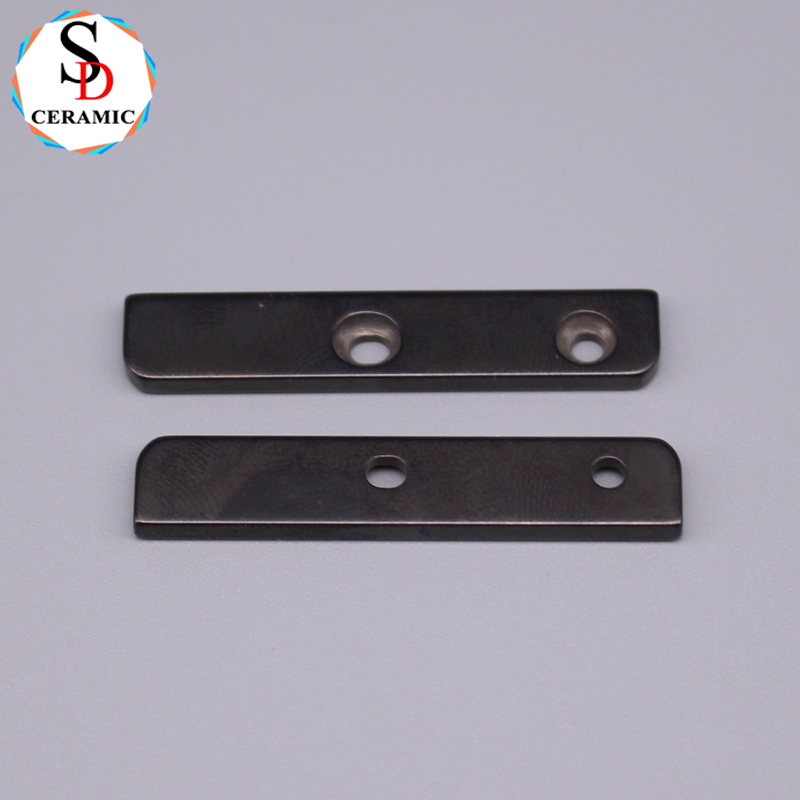

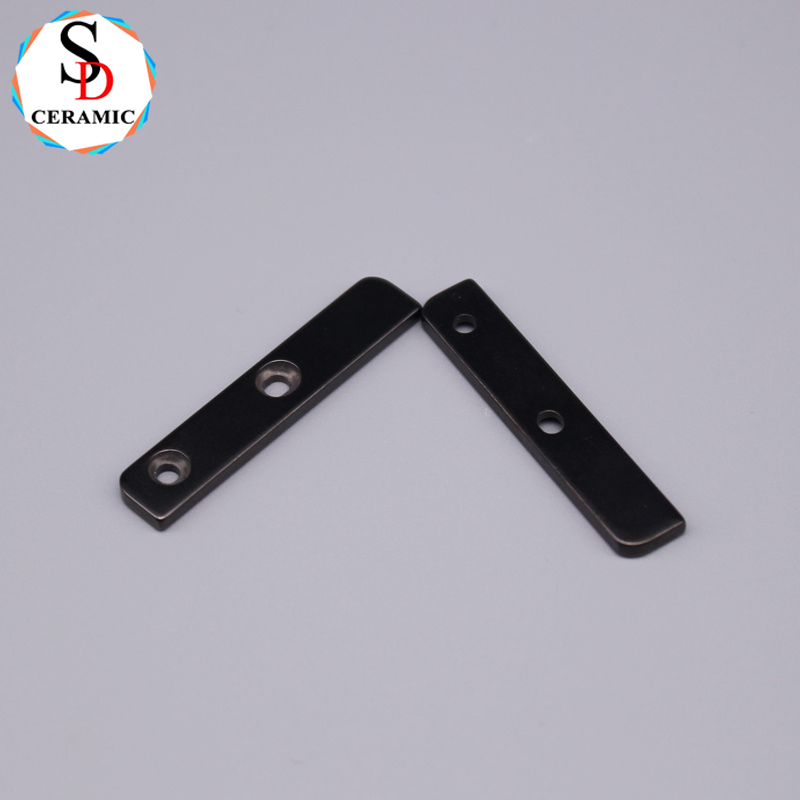

High Abrasion Resistant Silicon Nitride Ceramic Strip Sheet with Double Hole for Precision ApplicationsHigh Abrasion Resistant Silicon Nitride Ceramic Strip Sheet with Double Hole for Precision ApplicationsHigh Abrasion Resistant Silicon Nitride Ceramic Strip Sheet with Double Hole for Precision Applications




Why Choose Ceramic Strip?

✅ Material Expertise - Advanced ceramic formulations

✅ Precision Manufacturing - CNC machining and laser cutting

Quality Assurance - Full metrology inspection

Application Engineering - Solutions tailored to your needs

Global Support - Technical assistance worldwide




Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe


Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.



Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926


High Temperature Alumina Ceramic Block Ring
