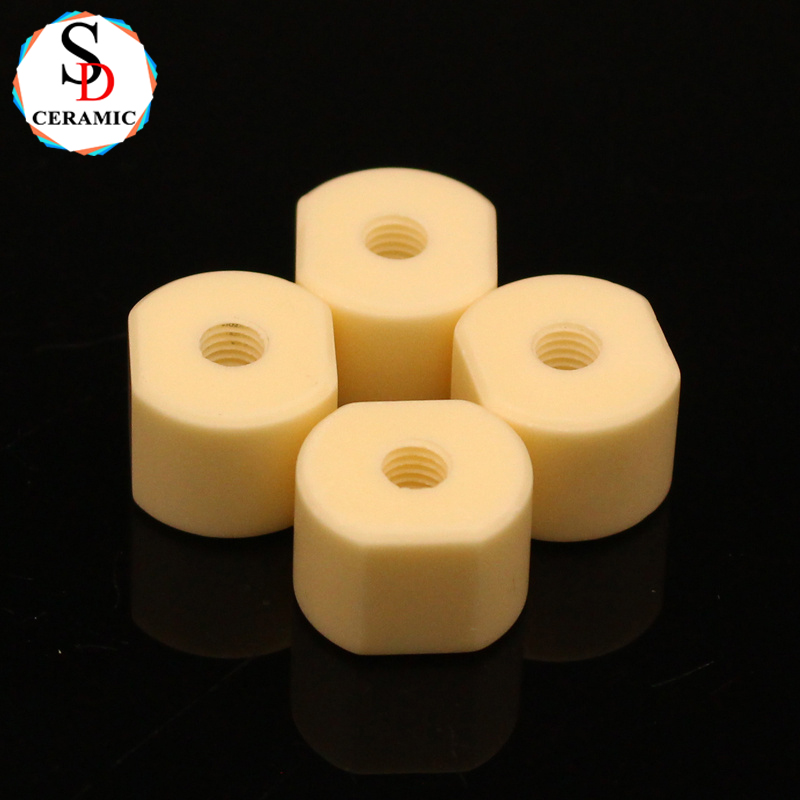

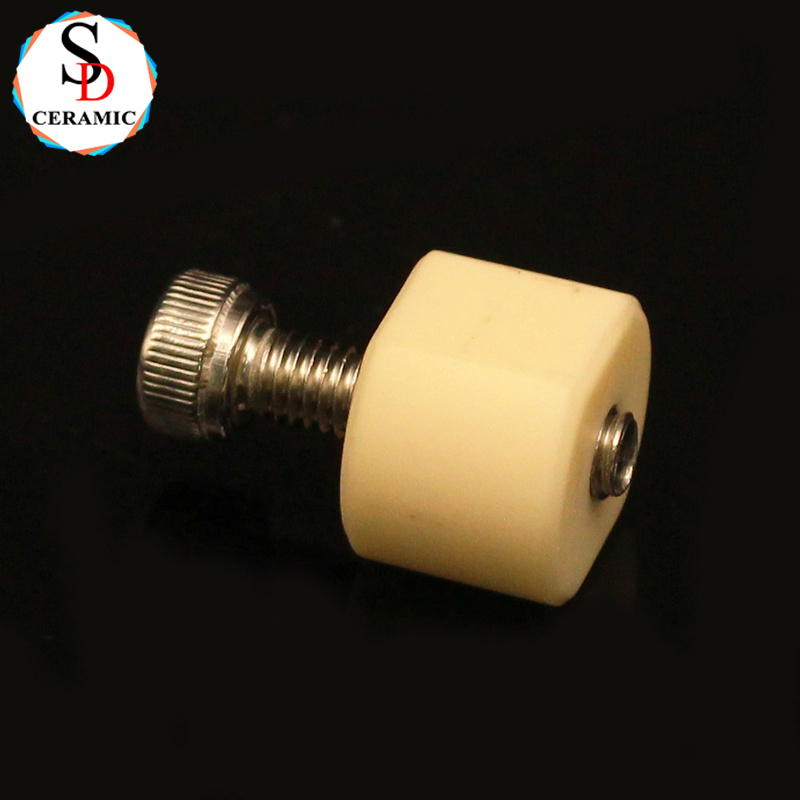

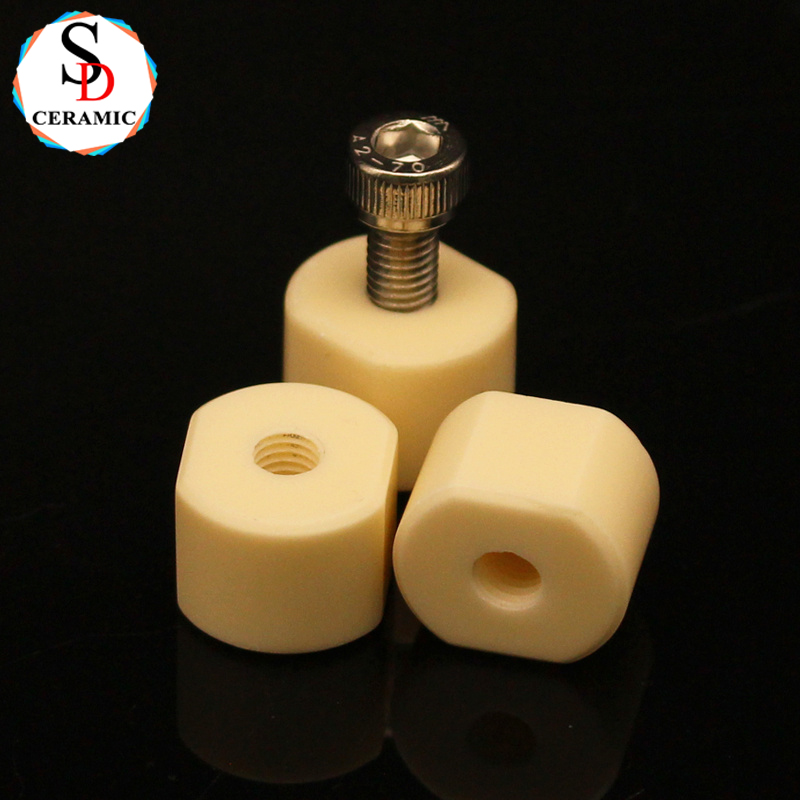

Customized Shape 99 Alumina Ceramic Nut Screw Al2O3 Ceramic Insulator for Industrial Using

Shengda Ceramic provide all kinds of Alumina Ceramic Engineering Ceramic.

Product Introduction

﹡Product Overview

Our 99% alumina ceramic nuts and screws represent the ultimate solution for industries requiring electrical insulation, chemical resistance, and high-temperature stability. These precision-engineered Al₂O₃ fasteners outperform metal alternatives in corrosive, high-voltage, and thermally demanding applications while maintaining exceptional mechanical strength.


Key Features & Benefits

✔ Ultra-High Electrical Insulation (10¹⁴-10¹⁵ Ω·cm)

✔ Exceptional Corrosion Resistance (Acid/alkali proof)

✔ Thermal Stability up to 1600°C (2912°F)

✔ Wear & Abrasion Resistance (Mohs 9 hardness)

✔ Non-Magnetic & RF Transparent

✔ Custom Thread Profiles & Dimensions


Industry Applications

1. High-Voltage Electrical Systems

Insulating fasteners for power distribution equipment

Busbar supports in switchgear assemblies

Transformer mounting hardware

2. Semiconductor Manufacturing

Wafer handling screws for vacuum chambers

Plasma-resistant fasteners in etch tools

Ultra-clean clamp components for CVD systems

3. Chemical Processing

Corrosion-proof fasteners for reactor vessels

Pump assembly nuts in acid service

Sensor mounting hardware for harsh environments

4. Medical & Food Equipment

Autoclavable screws for sterilization systems

FDA-compliant fasteners for processing lines

MRI-compatible mounting hardware

5. Aerospace & Defense

Radome fastening systems

Missile guidance components

Satellite sensor mounts


Customized Shape 99 Alumina Ceramic Nut Screw Al2O3 Ceramic Insulator for Industrial UsingCustomized Shape 99 Alumina Ceramic Nut Screw Al2O3 Ceramic Insulator for Industrial UsingCustomized Shape 99 Alumina Ceramic Nut Screw Al2O3 Ceramic Insulator for Industrial Using




Why Choose Alumina Ceramic Nuts?

✅ 5-10x Longer Service Life vs. metal in corrosive environments

✅ Eliminate Galvanic Corrosion in mixed-material assemblies

✅ Maintain Performance at extreme temperatures

✅ Reduce Maintenance Downtime and replacement costs

✅ Custom Engineered Solutions for unique challenges




Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe


Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.



Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926


High Temperature Alumina Ceramic Block Ring
