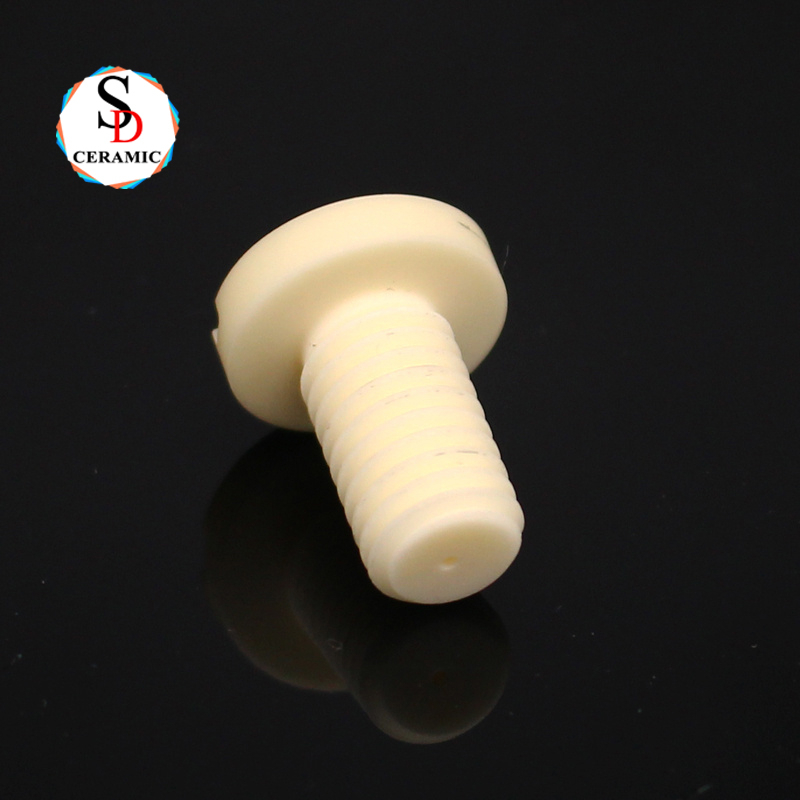

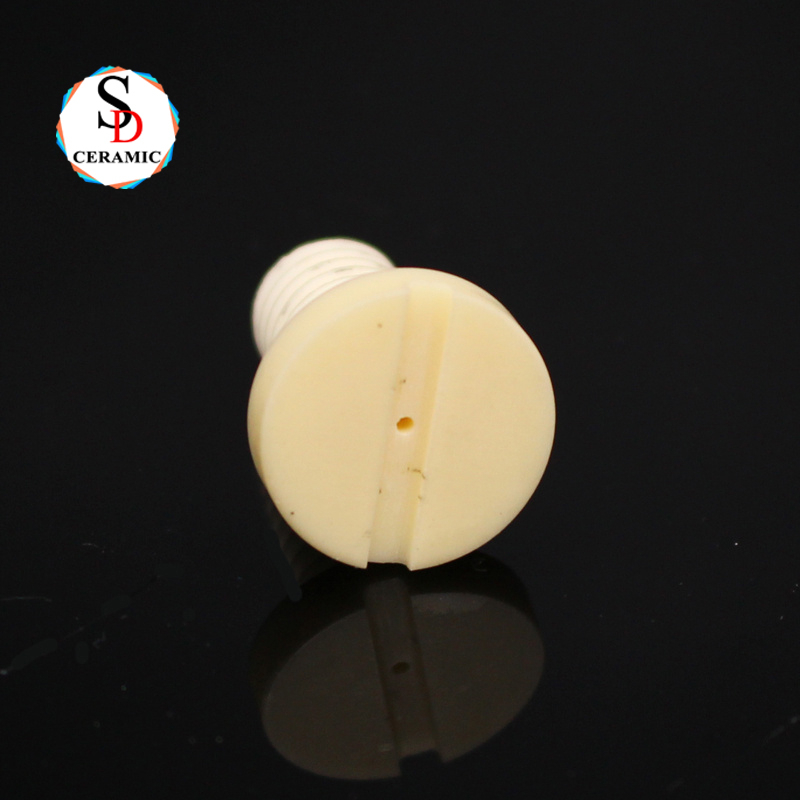

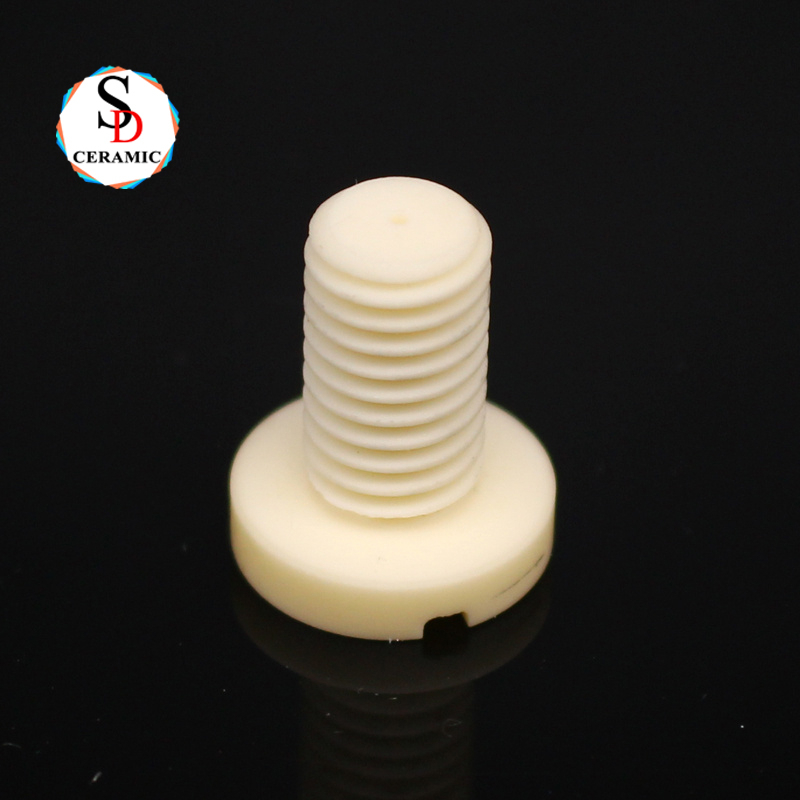

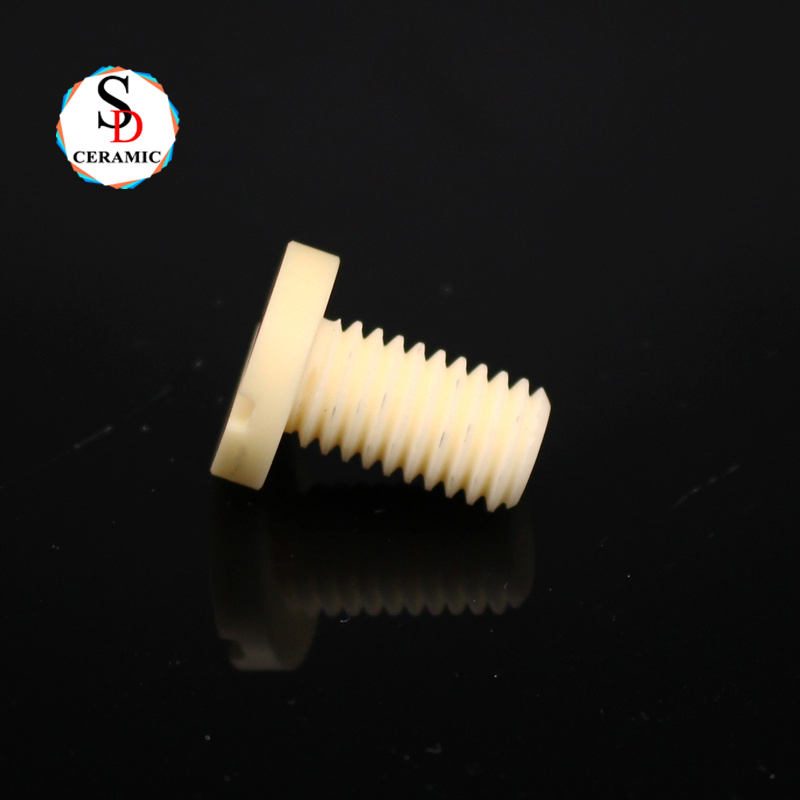

Environmentally Friendly and Heat-resistant 99 Alumina Ceramic Bolt for Machining Injection

Shengda Ceramic provide all kinds of Alumina Ceramic Engineering Ceramic.

Product Introduction

﹡Product Overview

Our 99% alumina ceramic bolts represent the next generation of high-performance fastening solutions, combining exceptional heat resistance, electrical insulation, and environmental safety for demanding machining and injection processes. These precision-engineered ceramic fasteners outperform traditional metal bolts in high-temperature, corrosive, and electrically sensitive applications while being completely non-toxic and recyclable.


Key Features & Benefits

✔ Extreme Heat Resistance - Stable up to 1600°C (2912°F) continuous operation

✔ 100% Corrosion Proof - Immune to acids, alkalis, and chemical degradation

✔ Perfect Electrical Insulation - Volume resistivity >10¹⁴ Ω·cm

✔ Zero Metal Contamination - Ideal for clean manufacturing processes

✔ Lightweight & Durable - 60% lighter than steel with comparable strength

✔ Customizable Designs - Available in all standard & specialty thread types


Industry Applications

1. Plastic Injection Molding

Non-stick mold fasteners preventing material buildup

Insulating bolts for hot runner systems

Wear-resistant components in abrasive compound processing

2. Semiconductor Manufacturing

Ultra-clean fasteners for wafer handling equipment

Plasma-resistant bolts for etching chambers

Static-free components in cleanroom environments

3. High-Temperature Machining

Furnace fixture fasteners stable at extreme temps

Thermally insulated bolts for cutting tools

Heat-resistant fasteners for ceramic/metal composite machining

4. Chemical Processing

Corrosion-proof fasteners for reactor vessels

Acid-resistant bolts for piping systems

Non-contaminating components for pharmaceutical equipment

5. Energy & Power Generation

Insulating fasteners for high-voltage equipment

Thermal barrier bolts in power electronics

Turbine components resistant to hot gas corrosion


Environmentally Friendly and Heat-resistant 99 Alumina Ceramic Bolt for Machining InjectionEnvironmentally Friendly and Heat-resistant 99 Alumina Ceramic Bolt for Machining InjectionEnvironmentally Friendly and Heat-resistant 99 Alumina Ceramic Bolt for Machining Injection




Why Choose Alumina Ceramic Bolts?

✅ 5-10× Longer Service Life vs. metal fasteners in harsh conditions

✅ Zero Maintenance - No lubrication required

✅ Environmentally Safe - Non-toxic and fully recyclable

✅ Process Stability - Eliminates metal contamination risks

✅ Technical Support - Application engineering expertise




Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe


Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.



Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926


High Temperature Alumina Ceramic Block Ring
