Heat-conducting Porous T-shaped 95 Alumina Ceramic Block Support Customization

Shengda Ceramic provide all kinds of Alumina Ceramic Engineering Ceramic.

Product Introduction

﹡Product Overview

Our 95% alumina ceramic T-shaped blocks combine exceptional heat transfer capability with precise structural support in demanding high-temperature environments. These porous ceramic insulators are engineered to provide optimal thermal management, electrical insulation, and mechanical stability for industrial heating systems, semiconductor equipment, and energy applications.


Key Features & Benefits

✔ Optimized Thermal Conductivity (24-28 W/m·K) for efficient heat transfer

✔ Controlled Porosity (15-30%) allowing gas permeability while maintaining strength

✔ High-Temperature Stability up to 1500°C (2732°F) continuous operation

✔ Precision T-Shaped Geometry for secure component mounting and alignment

✔ Excellent Dielectric Properties (Volume Resistivity >10¹⁴ Ω·cm)

✔ Customizable Dimensions to fit specific equipment requirements


Industry Applications

1. Semiconductor Manufacturing Equipment

Wafer processing chamber supports

Plasma etcher component insulators

Vacuum feedthrough structural blocks

2. Industrial Heating Systems

Furnace element support blocks

Thermocouple protection mounts

Heat treatment fixture components

3. Energy & Power Generation

Fuel cell stack support elements

Battery thermal management spacers

Solar receiver mounting blocks

4. Laboratory & Research Equipment

High-temp microscope stage components

CVD/PVD reactor structural supports

Analytical instrument insulation blocks

5. Automotive & Aerospace

Sensor mounting blocks in exhaust systems

Thermal barrier system components

Electric vehicle power module supports

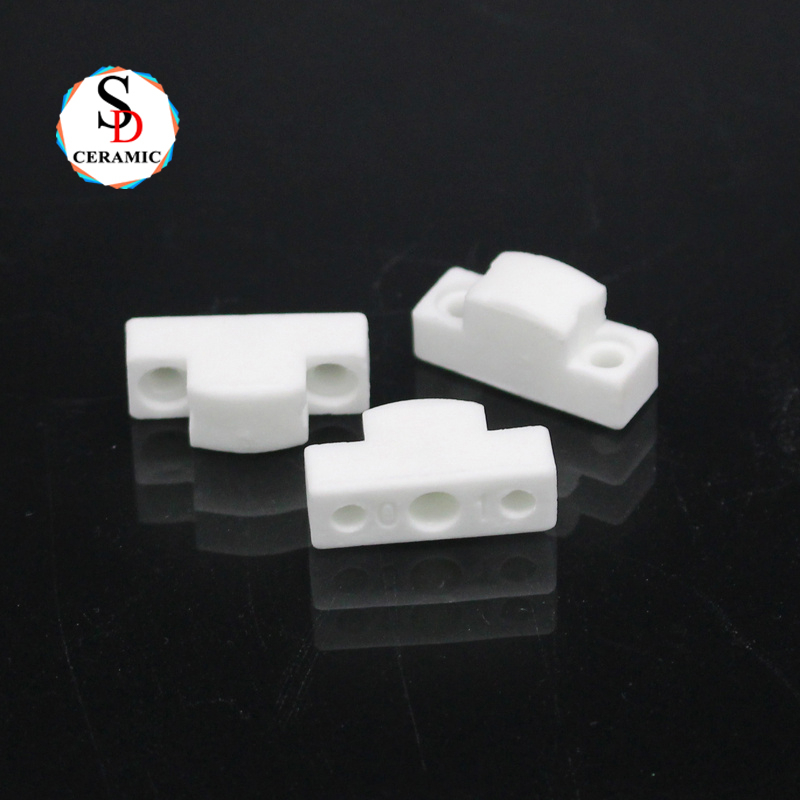

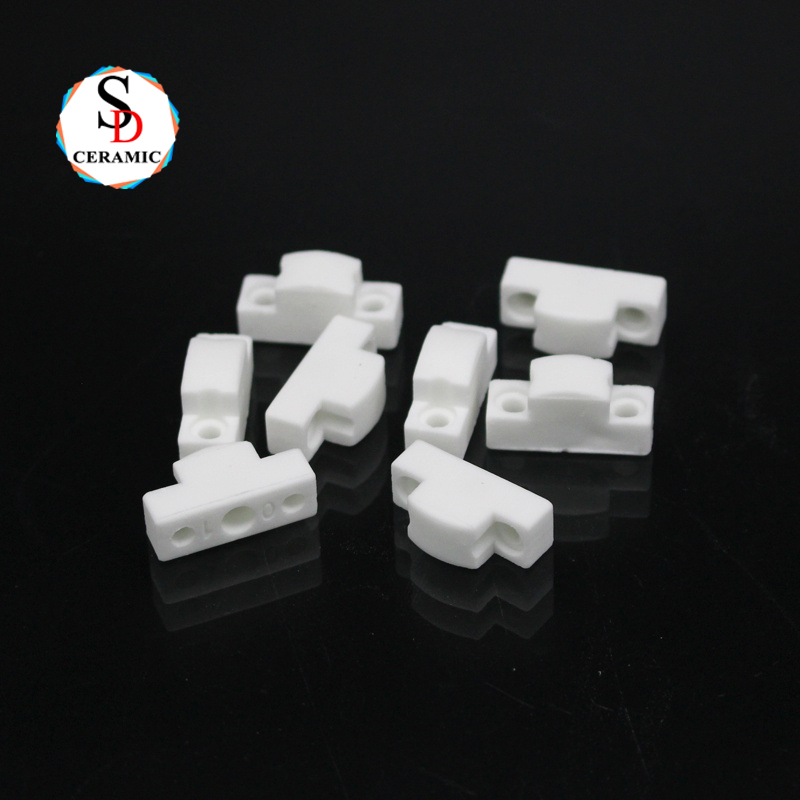

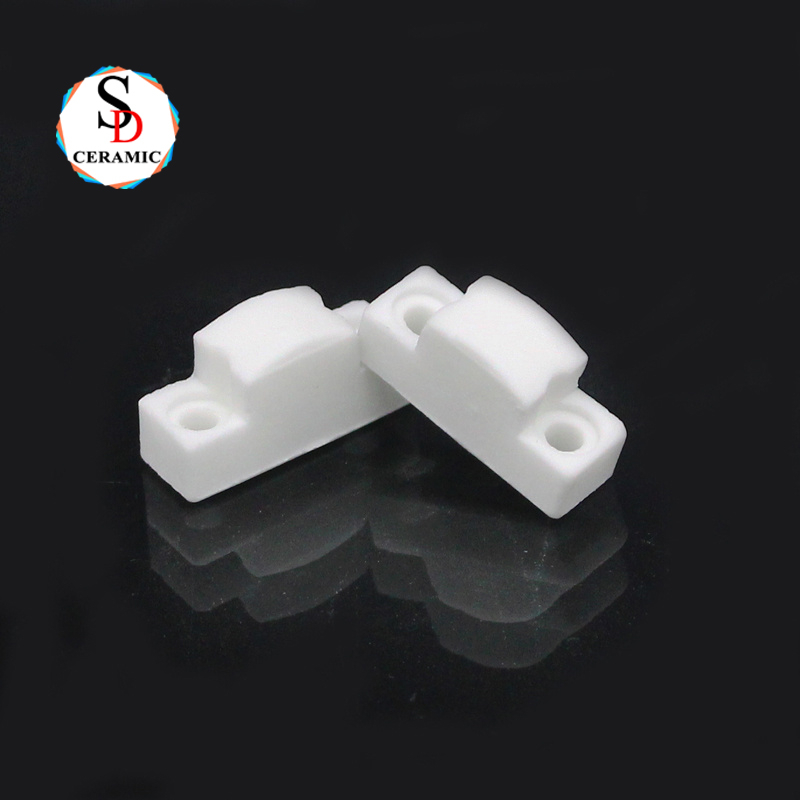

Heat-conducting Porous T-shaped 95 Alumina Ceramic Block Support CustomizationHeat-conducting Porous T-shaped 95 Alumina Ceramic Block Support CustomizationHeat-conducting Porous T-shaped 95 Alumina Ceramic Block Support Customization




Why Choose Alumina Ceramic Block?

✅ Material Expertise: Advanced 95% Al₂O₃ formulation for optimal performance

Precision Manufacturing: CNC machining and laser measurement for accuracy

Application Engineering: Solutions tailored to your thermal management challenges

Quality Assurance: Full traceability and batch testing certification

Global Support: Technical assistance from prototype to production




Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Company

High Wear Resistance Zirconia Ceramic Tube ZrO2 Ceramic Pipe


Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.



Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926
