Why Choose Cordierite Ceramics to Meet Your Industrial Needs

Brief introduction

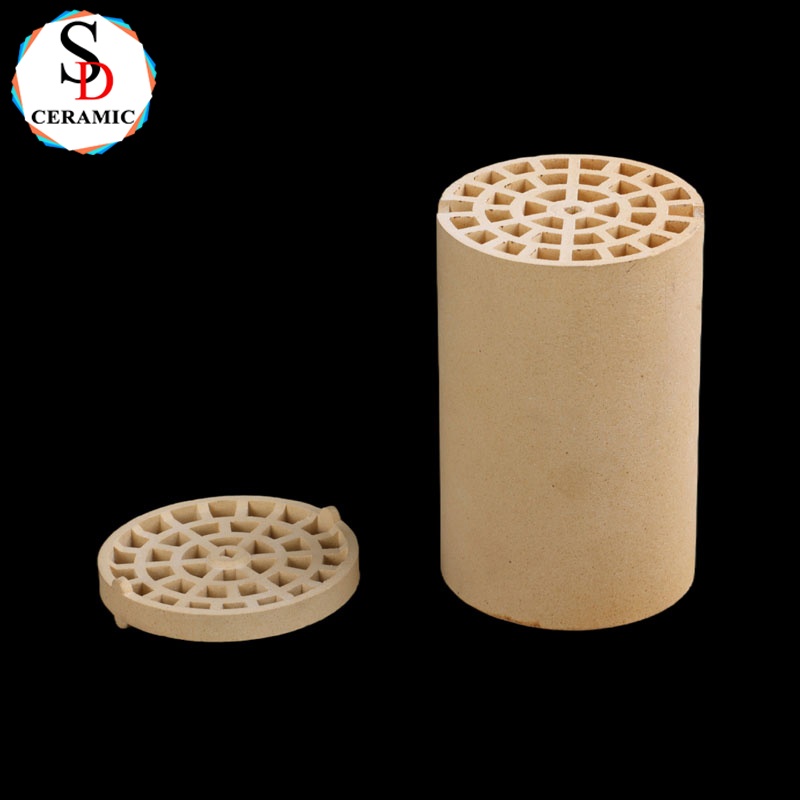

Cordierite ceramics (2MgO·2Al₂O₃·5SiO₂) have become an irreplaceable material in high-temperature thermal cycling environments due to their ultra-low thermal expansion coefficient and excellent thermal shock resistance. From automobile exhaust treatment to 5G communication, from high-temperature filtration to precision electronics, cordierite ceramics are providing unique solutions for various industries.

Here are the top ten key advantages of choosing cordierite ceramics:

1. Ultra low thermal expansion coefficient

The coefficient of thermal expansion is only 1.5-2.5 × 10 ⁻⁶/K (25-800 ° C), close to zero expansion, making it an ideal substrate material for precision optical devices and satellite antennas.

2. Unparalleled thermal shock resistance

Capable of withstanding rapid cooling and heating with Δ T>1000 ° C, it performs excellently in thermal cycling applications such as automotive catalytic converters and industrial kilns.

3. Lightweight porous structure

The density is only 2.0-2.6g/cm ³, which is 30% lighter than alumina. The honeycomb structure can achieve a controllable porosity of 20-50%.

4. Excellent thermal insulation performance

Thermal conductivity of 1-3W/(m · K), combined with porous structure, is the best choice for high-temperature furnace lining and thermal barrier coating.

5. High frequency dielectric properties

Dielectric constant 4-5 (1MHz), dielectric loss<0.001, perfect for 5G base station antennas and millimeter wave devices.

6. Environmental friendliness

The raw materials are abundant and non-toxic, and the energy consumption during the production process is 60% lower than that of silicon carbide, which meets the requirements of green manufacturing.

7. Chemical stability

Resistant to weak acid and weak alkali corrosion (except HF), it is a high-quality material for chemical filters and bioreactors.

8. Workability

It can perform secondary processing such as precision drilling and laser cutting, achieving a dimensional accuracy of ± 0.05mm.

9. Cost effectiveness

The price is only one-third of that of silicon carbide ceramics, which has significant advantages in large-scale applications such as diesel particulate filters (DPF).

10. Multi functional composite

Can be compounded with metals and polymers to create a new type of composite material that combines low expansion and high strength.

Industry application model

Automotive Environmental Protection: Honeycomb Catalytic Carrier (900 ° C Long term Stability)

Electronic communication: 5G antenna substrate (dielectric loss<0.0005)

Energy and Environmental Protection: Molten Metal Filter (1600 ° C Washable)

Aerospace: Satellite antenna cover (transmittance>95%)

Industrial manufacturing: Precision measuring instrument base (zero thermal deformation)

Conclusion

Due to its "king of thermal stability" characteristics, cordierite ceramics have demonstrated irreplaceable value in applications that require resistance to extreme thermal cycles. Whether it's harsh automotive exhaust environments, sophisticated electronic communication systems, or high-temperature industrial processing, cordierite ceramics can provide reliable solutions.

Contact our materials engineer immediately for customized cordierite ceramic solutions!
